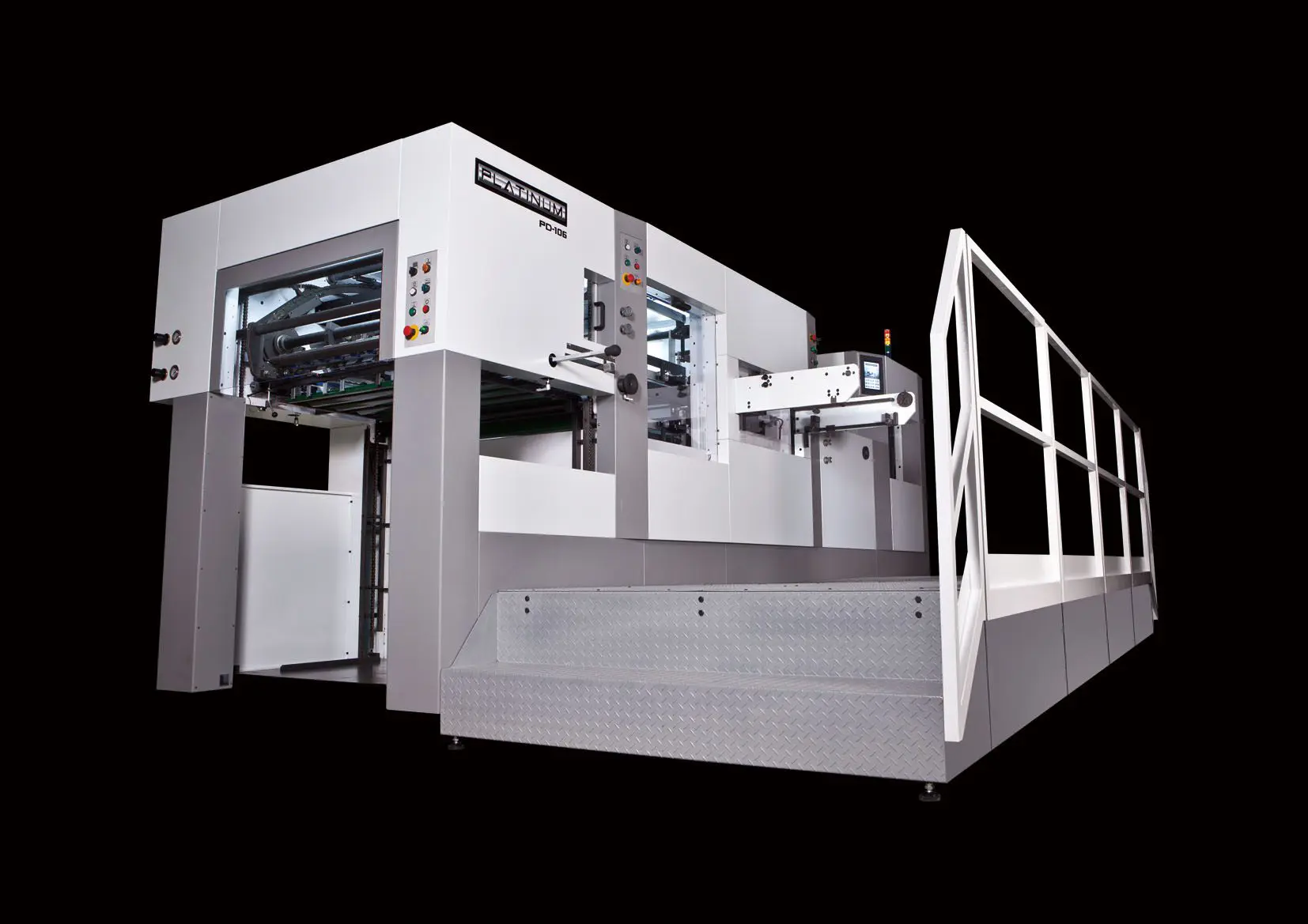

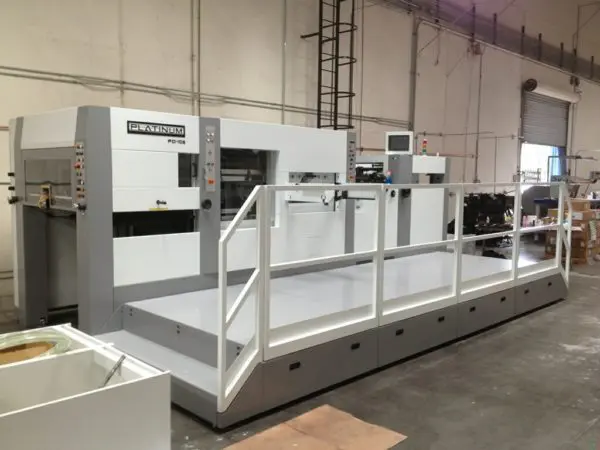

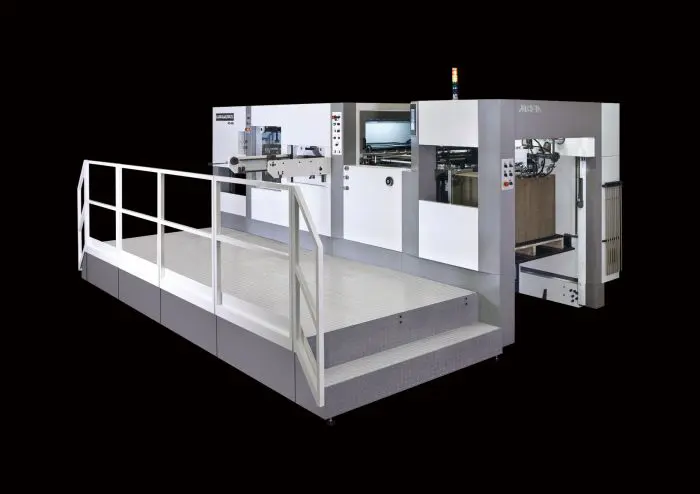

*NEW* Platinum PD-106 Die Cutter

Home>New Equipment>New Die Cutting Equipment>*NEW* Platinum PD-106 Die Cutter

MATCH PRODUCT I.D.:

I.D.#PD-106

EQUIPMENT VIDEOS

EQUIPMENT OVERVIEW

MANUFACTURER:

SBL

PRODUCT CATEGORY:

,

EQUIPMENT NAME:

*NEW* Platinum PD-106 Die Cutter

DESCRIPTION:

*NEW* Platinum SBL PD-106
•Wide feeding range from 400mm x 350mm (without small sheet device) to 1060mm x 760mm (41.73” x 29.92”).
•Non-stop device for feeder and delivery station allows for continuous production.
•Double sheet and front lay register device for proper sheet calibration.
•Push and pull (2-in-1) side guide device for quick changeovers.
•Seven (7) high strength alloy gripper bars with specially designed gripper bar fingers which open simultaneously. Each gripper bar is also equipped with a registration adjustment system.
•Touch screen monitor with computerized self-diagnostic system is easy to operate and helpful for troubleshooting each section.
•Cutting pressure can be adjusted automatically according to the stock requirements up to a maximum pressure of 300 tons.
•Various stock cutting range from light paper to B-flute.
•Special stripping device and gripper edge device for easy waste removal.
•The brush and jogger device in delivery station for proper pile alignment.
•Pneumatic chase locking system and automatic impression control system. Adjustable by touch screen.
•Resocell (thin) plate with micro adjustment system.
•Stripping section with center line system and registration system.
*Speeds to 8000 Sheets per Hour
Reference #PD-106

DATE OF MANUFACTURE:

NEW OR PREVIOUSLY OWNED:

New Equipment

UNDER POWER:

CURRENTLY IN OPERATION:

GENERAL SPECIFICATIONS:

Maximum paper size                           : 1060 x 760 mm (41.7” x 29.9”)

Minimum paper size                            : 400 x 350 mm (15.7” x 13.8”)

Maximum cutting size                         : 1050 x 740 mm (41.3” x 29.1”)

Maximum cutting pressure                 : 300 Metric Tons

Stock range                                         : 0.1~2 mm (0.004” – 0.078”)

Minimum gripper margin                     : 10.5 mm (0.41”)

Inner size of chase                             : 1155 x 852 mm (45.5” x 33.5”)

Size of cutting plate                            : 1076 x 756 mm (42.4” x 29.8”)

Maximum mechanical speed              : 8000 Sheets / hr

Power of main motor                          : 11 KW (15 HP)

Total power Requirement                   : 220V, 3-Phase, 60Hz, 45Amp.

Machine Dimension (L x W x H)         : 5975 x 4033 x 2237mm (19’-7” x 13’-2” x 7’-4”)

Machine weight                                   : 17,000 kg (37,400 lbs)

EQUIPMENT DOCUMENTATION

  • Documents Listed Below if Available

NEW-SBL-Platinum-PD-106-Brochure.pdf
