EQUIPMENT DETAILS

Match Machinery provides the following cursory details for this piece of equipment.  Please contact us for answers to your specific questions about the machine.  In addition to general sales questions, our service department can provide additional information concerning the machine’s operating condition, installation requirements, etc.  Please refer to the Match Machinery product I.D. just above the grey column at the right.

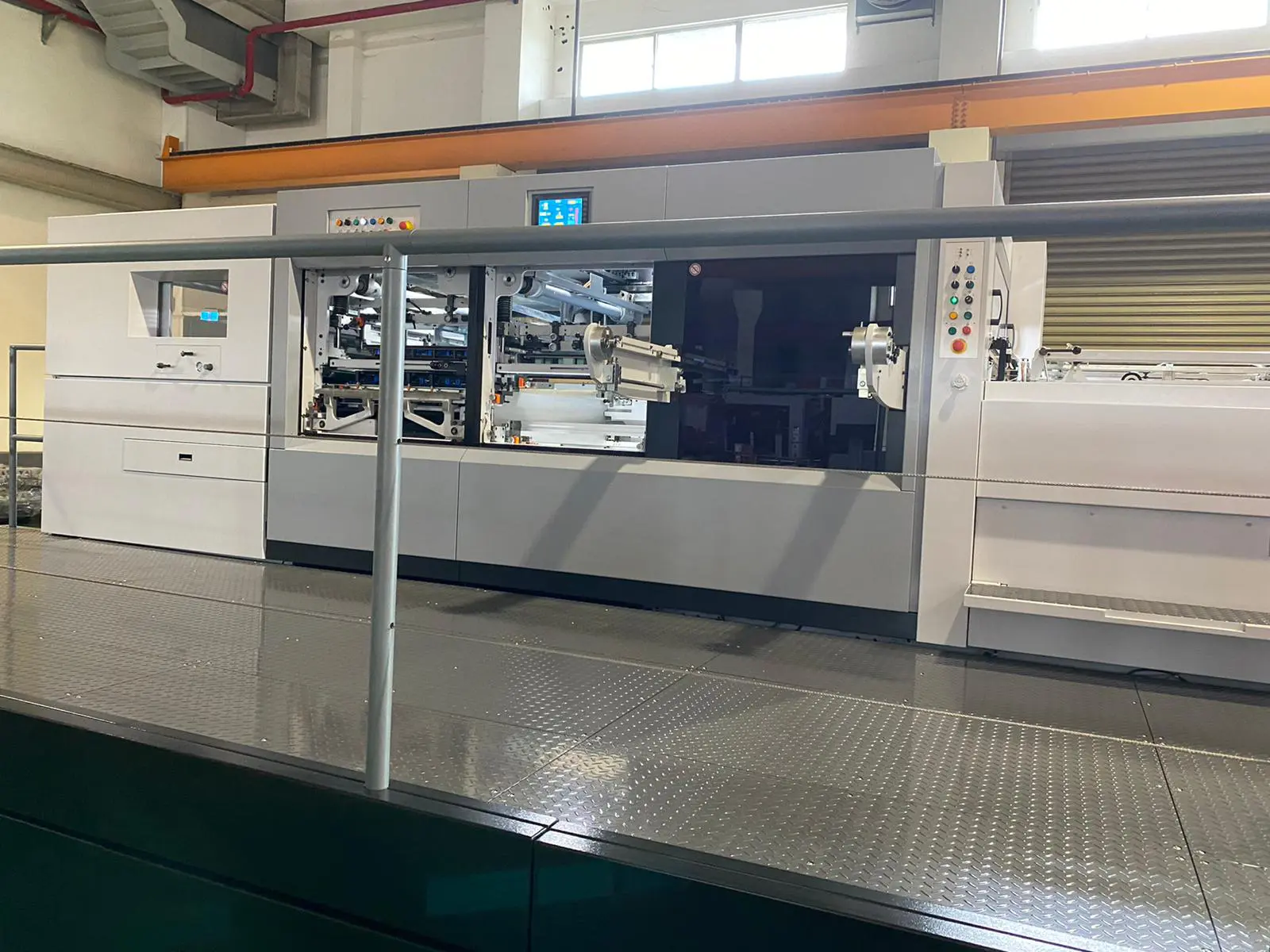

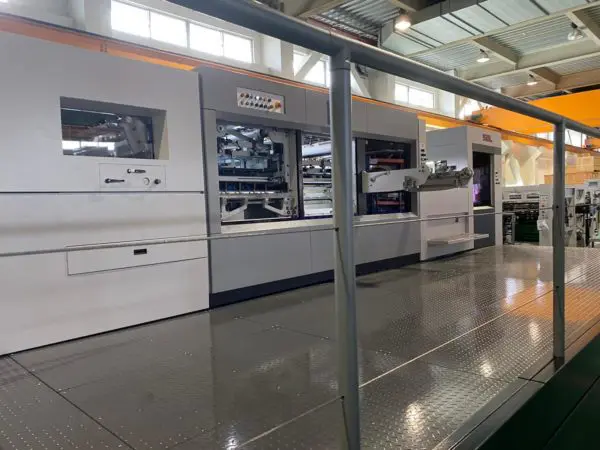

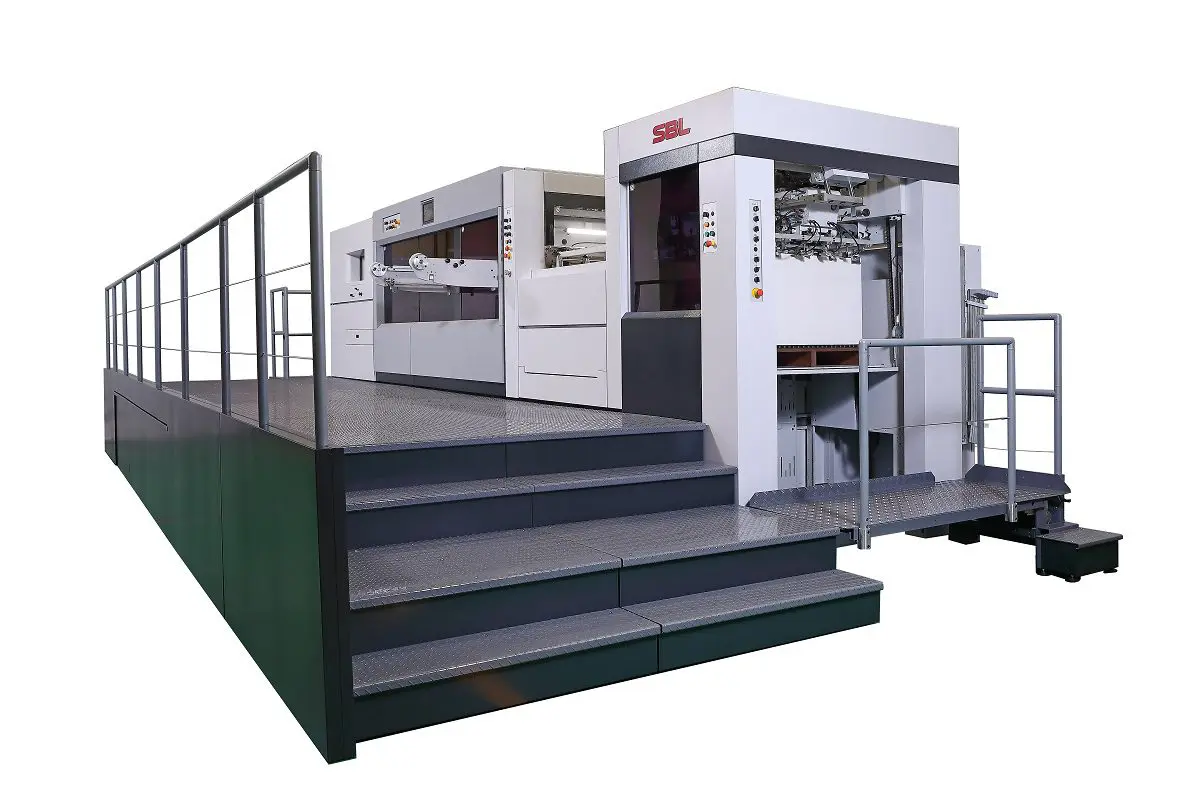

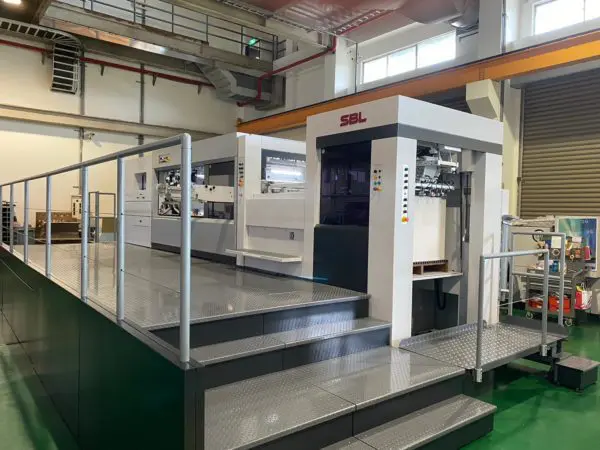

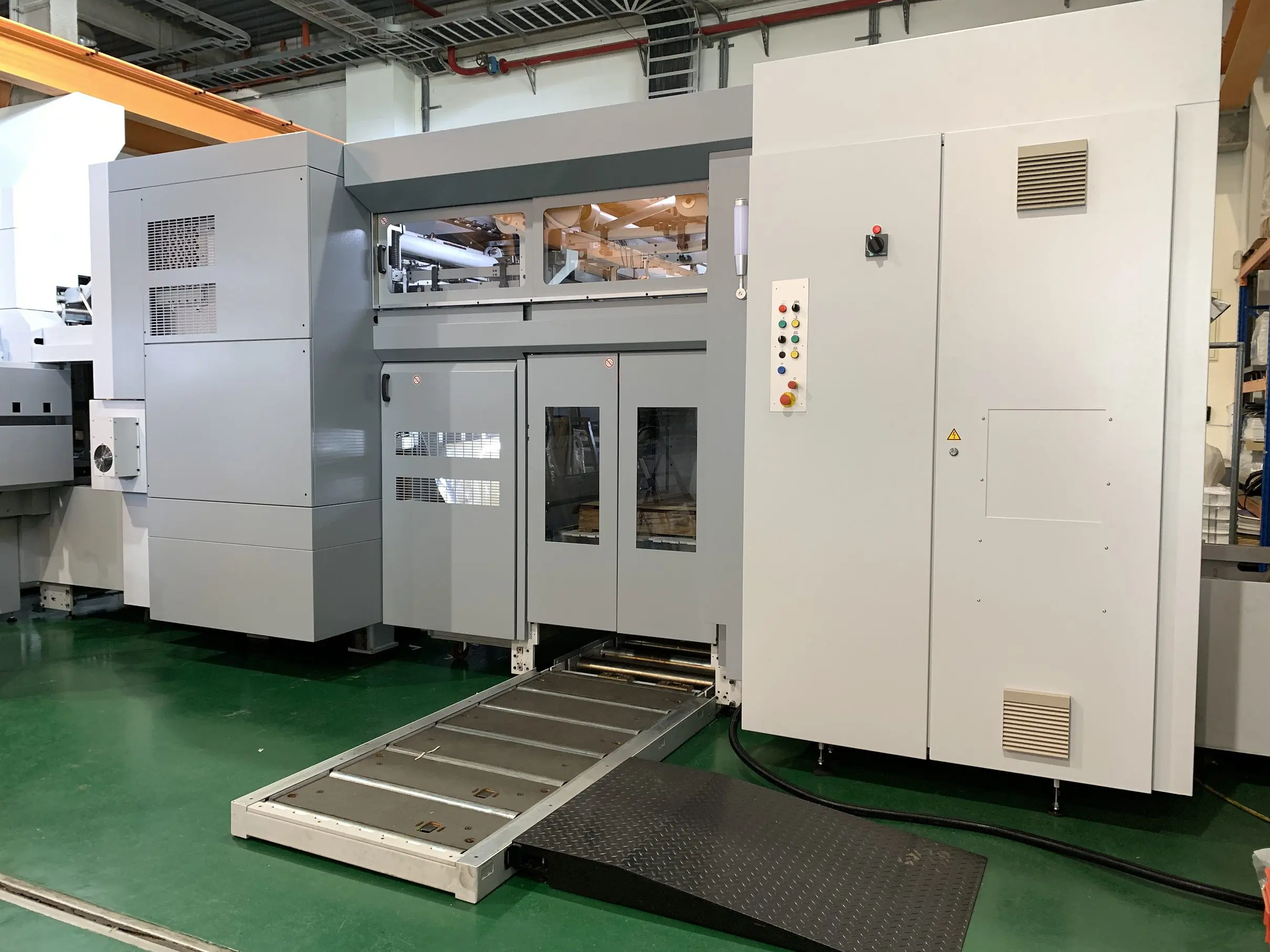

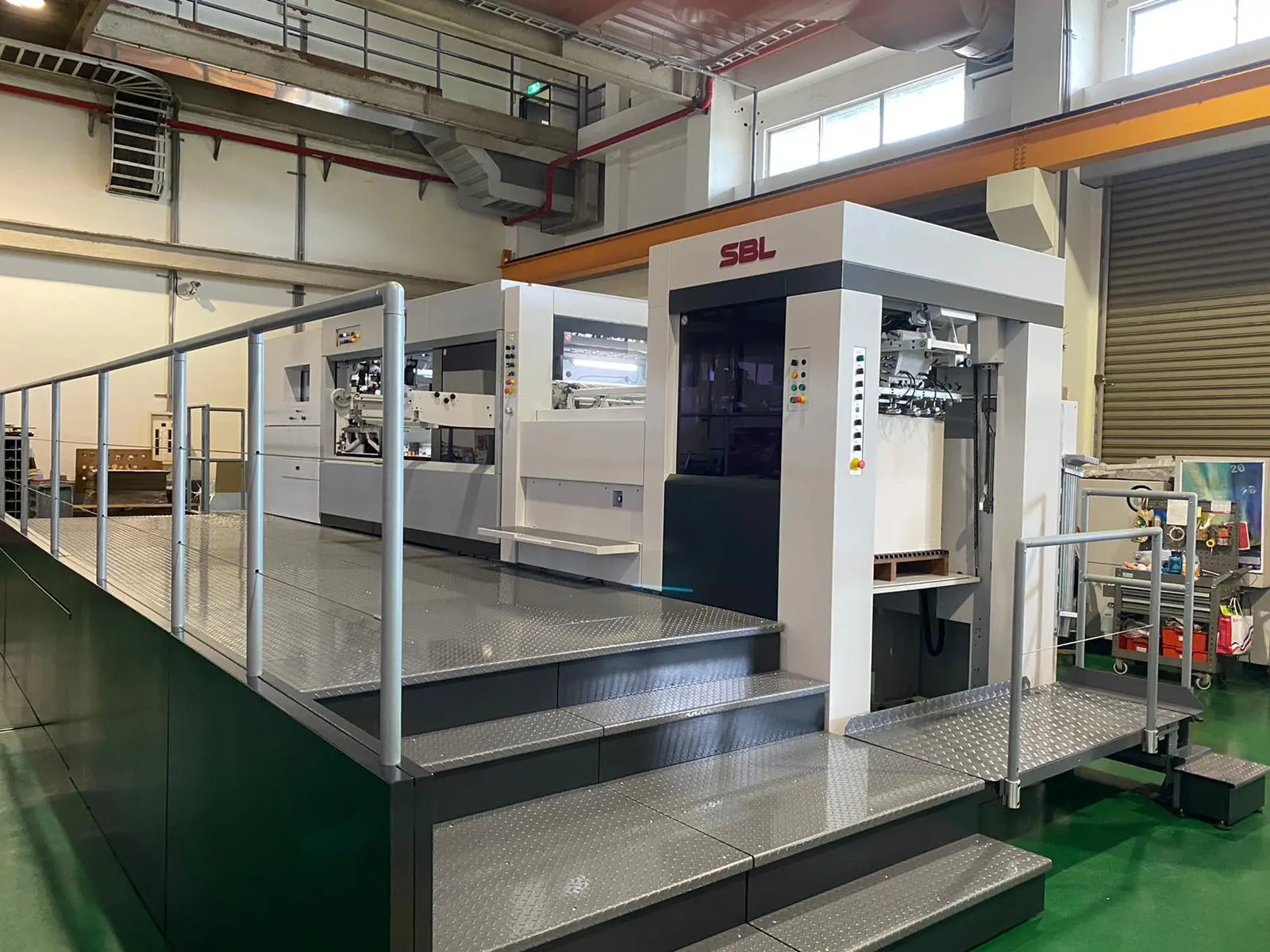

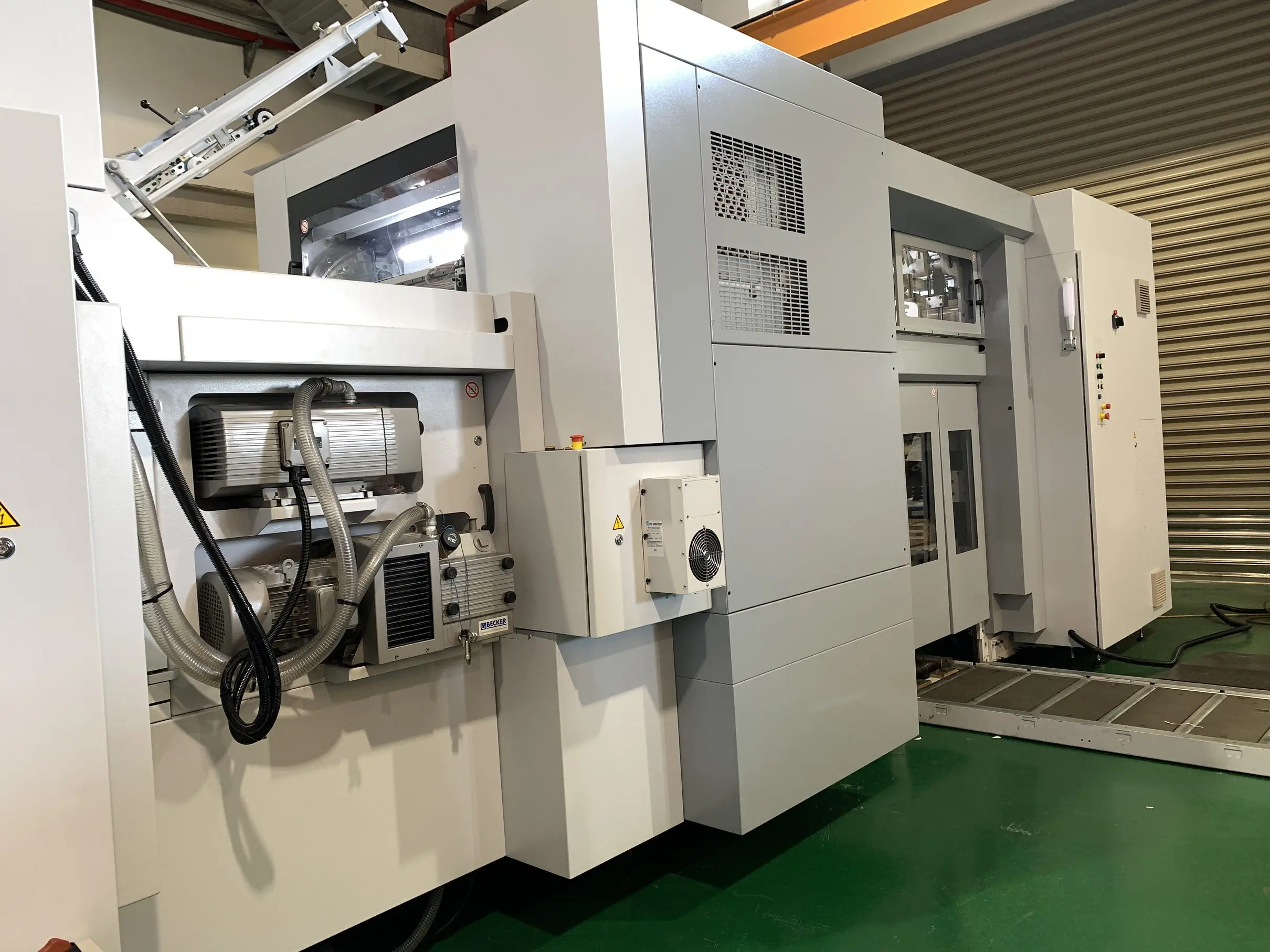

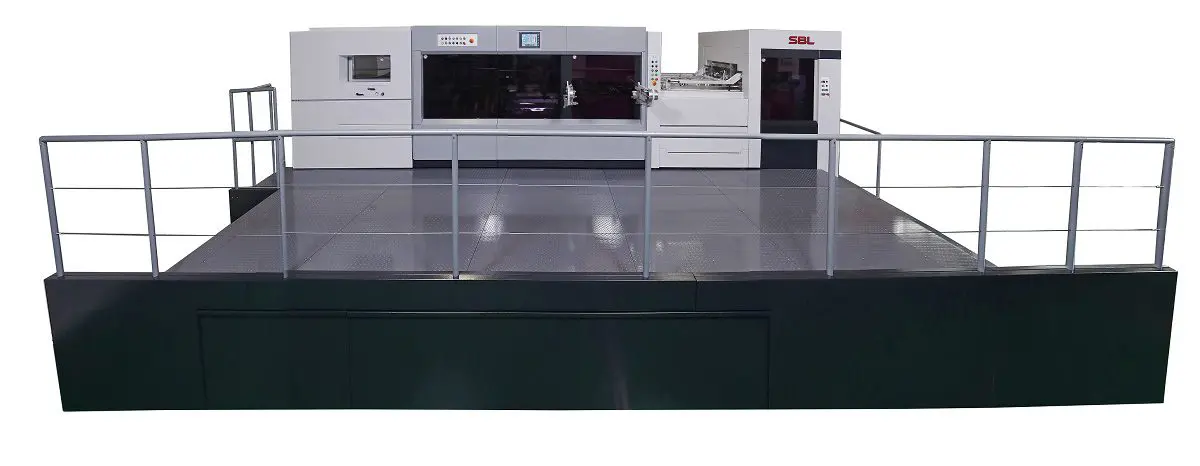

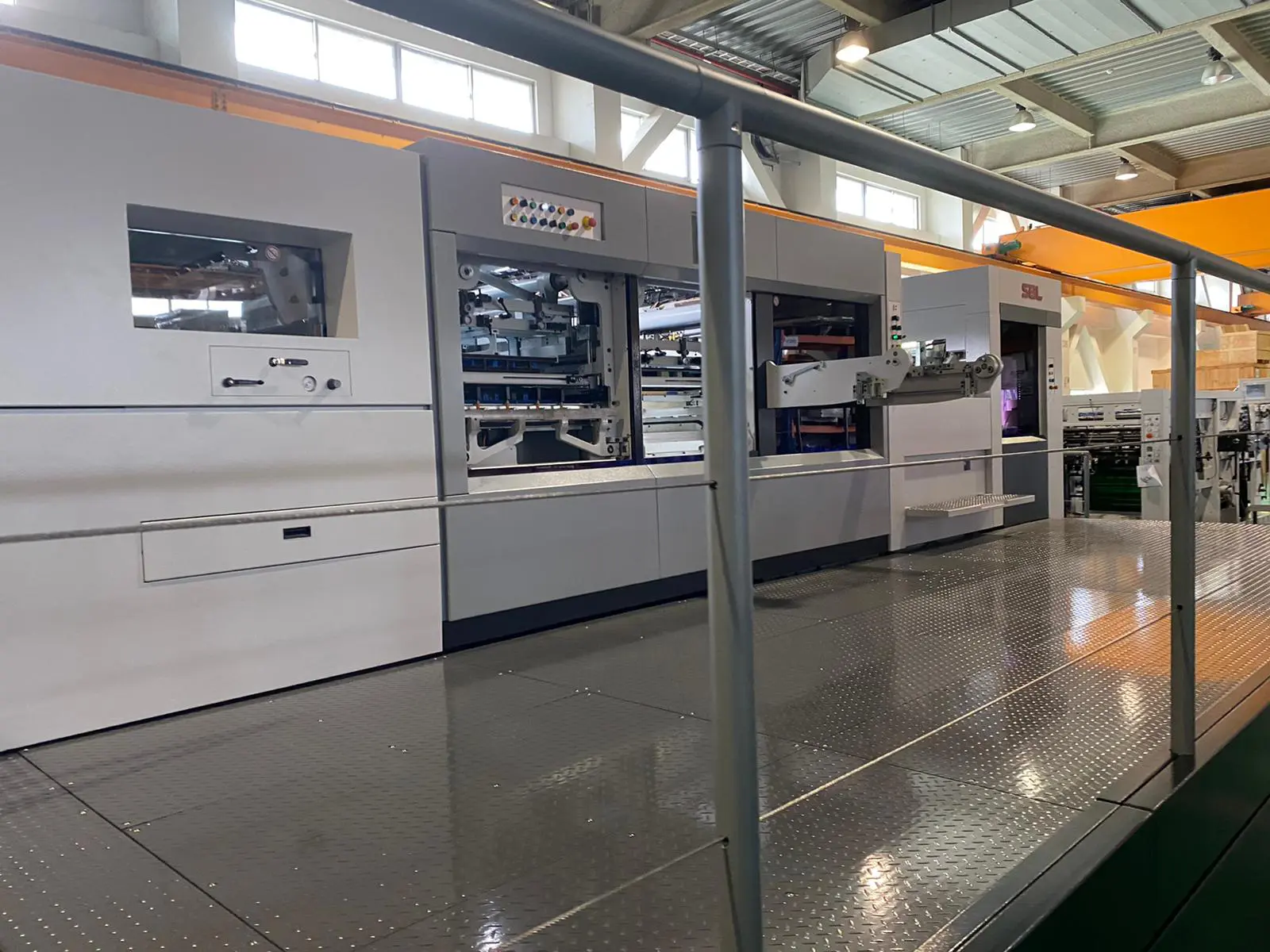

*NEW* SBL 106 SCB Die Cutter, Stripping and Blanking Machine

MATCH PRODUCT I.D.:

I.D.#106SCB

EQUIPMENT VIDEOS

EQUIPMENT OVERVIEW

MANUFACTURER:

SBL

PRODUCT CATEGORY:

EQUIPMENT NAME:

*NEW* SBL 106 SCB Die Cutter, Stripping and Blanking Machine

DESCRIPTION:

*NEW* SBL 106 SCB Die Cutter, Stripping and Blanking Machine
Motorize Side Adjustment of Pallet Table (+/- 35 mm), Air blower at the feeder,
Non-stop system for Feeder & Delivery Station, Mechanical / ultrasonic double sheet device,
Front lays register device with 4 sensors, Optical lateral sheet registration system,
Pneumatic chase locking system, Pneumatic chase pushing system,
Automatic placement for chase uploading, Automatic placement for gripper opening,
Digital platen pressure control, Cooling fan device,
Carbon fiber gripper bars,
Quick lock chases with fixed make-ready plate,
Thin plate cutting system,
12mm underplate with 4 way 0.9mm micro adjustment control,
1 Tool Set of Stripping/Blanking Station:
Quick Lock Frames for Stripping and Blanking,
Automatic slip sheet inserter, Waste or skeleton removal device
Max. paper size: 1060mm x 760mm (41.73” x 29.92”), Min. paper size: 400mm x 350mm (15.74” x 13.77”),
Max. pile height at feeder / with non-stop: 1820 / 1520 mm (71.65” x 59.84”),
Max. pile height at finish: 1550 mm (61.02”), Width of gripper margin: 9 ~ 17mm (0.354” x 0.669”),
Diecutting force: 260 Tons,
Thickness of die-cutting paper: 0.1mm ~ 1.6mm (70~1000gsm), Corrugated paper: ≦ 4mm,
Accuracy of die-cutting sheets: ±0.075mm
Dimension of machine (L)9600x(W)6000x(H)2700 mm (31.49’ x 19.68’ x 8.85’) (with catwalk),
Net weight: 22 Tons (44,000lbs), Power volt: 220V, Power consumption: 26kw, Max. machine speed 9,000 s/h
Reference #106SCB

DATE OF MANUFACTURE:

NEW OR PREVIOUSLY OWNED:

New Equipment

UNDER POWER:

Yes

CURRENTLY IN OPERATION:

No

GENERAL SPECIFICATIONS:

Max. paper size: 1060mm x 760mm (41.73” x 29.92”)
Min. paper size: 400mm x 350mm (15.74” x 13.77”)
Thickness of die-cutting paper: 0.1mm ~ 1.6mm (70~1000gsm)
Corrugated paper: ≦ 4mm,

Dimension of machine (L) 9600 x (W )6000 x (H) 2700 mm (31.49’ x 19.68’ x 8.85’ with catwalk)
Max. machine speed 9,000 s/h
