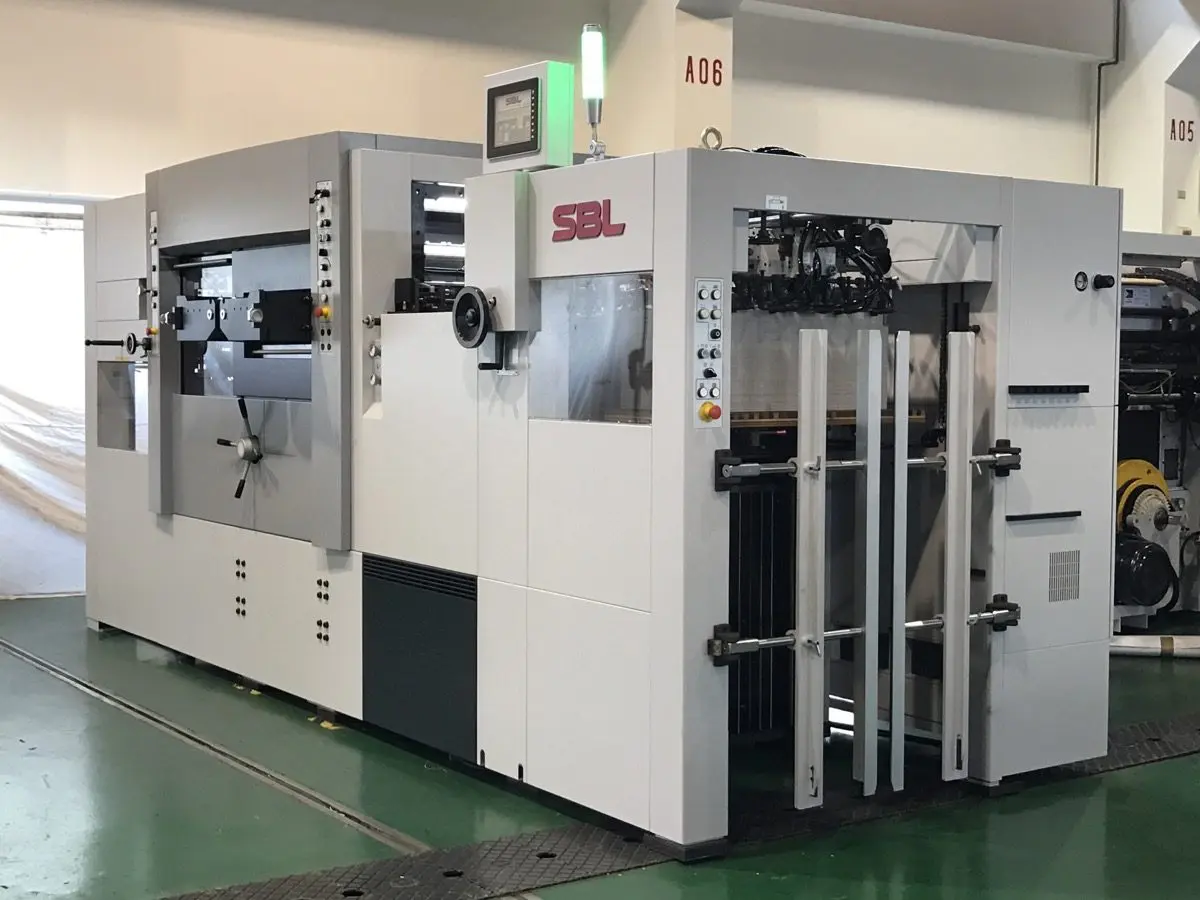

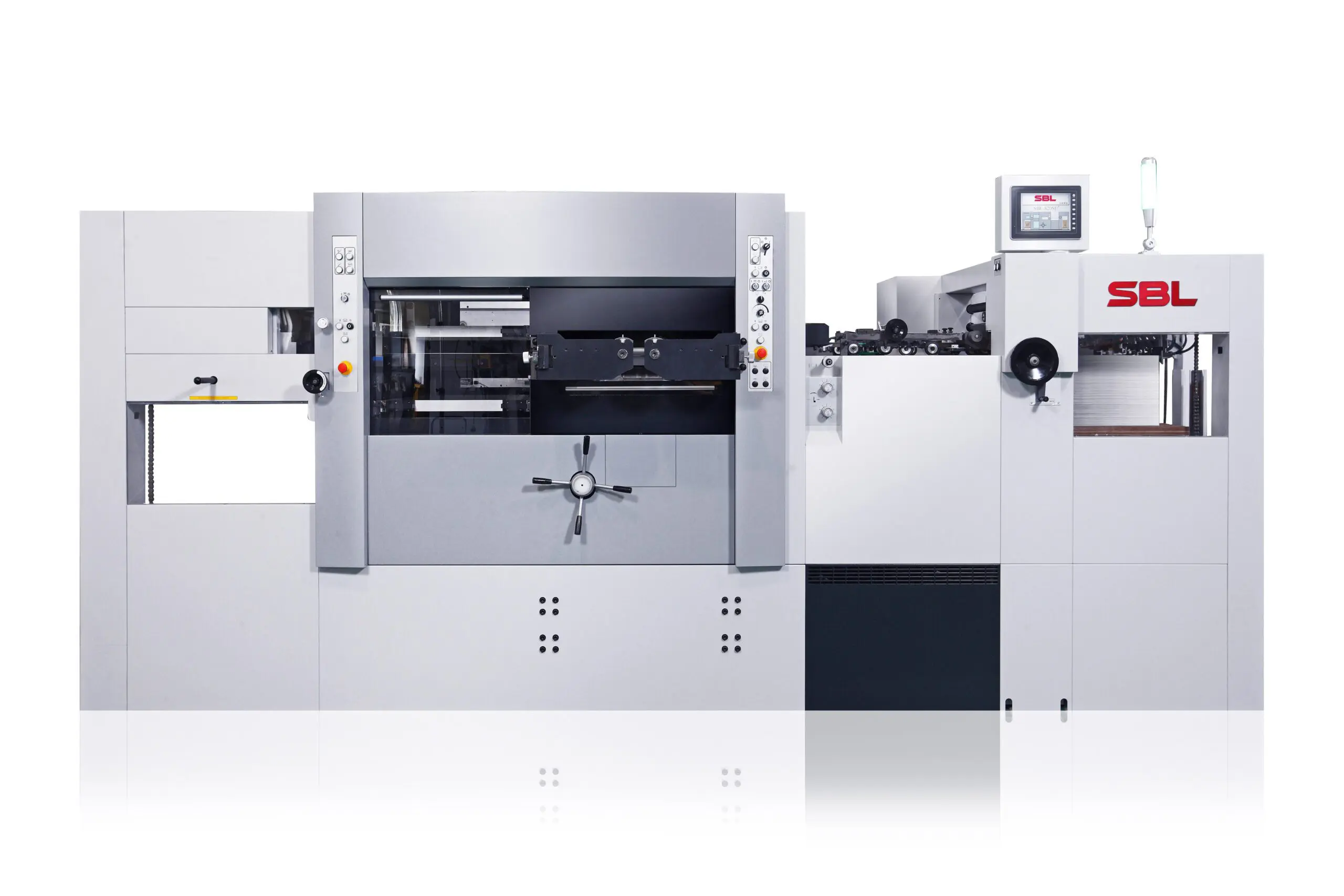

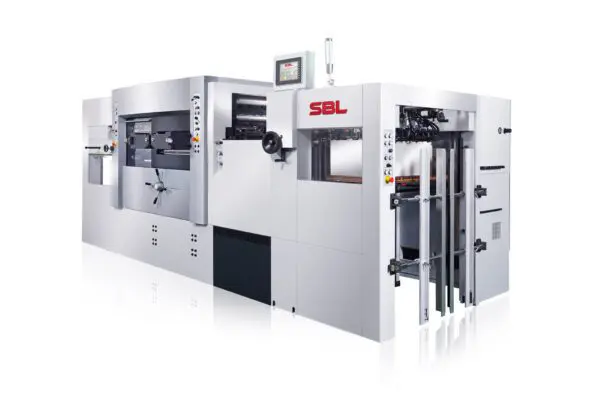

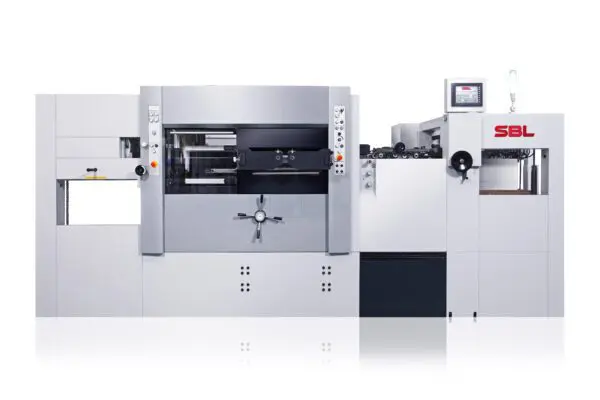

*NEW* SBL 820-SE (V02)

Home>New Equipment>New Die Cutting Equipment>*NEW* SBL 820-SE (V02)

MATCH PRODUCT I.D.:

I.D.#820SEV02

SBL 820SE 001
SBL 820SE

EQUIPMENT VIDEOS

EQUIPMENT OVERVIEW

MANUFACTURER:

SBL

PRODUCT CATEGORY:

,

EQUIPMENT NAME:

*NEW* SBL 820-SE (V02)

DESCRIPTION:

*NEW* SBL 820-SE (V02)
Wide feeding range from 320x280mm to 815x605mm,
Maximum running speed of 8000 sheets per hour,
Non-stop device for feeder and delivery station for continuous production,
The slow-down device on feed table ensures precise sheet feeding,
Double sheet and front lay register device for sheet feeding calibration,
Push and pull 2-in-1 side guide device to handle different stocks,
High strength alloy gripper bars,
Touch screen monitor with computerized self-diagnostic system,
Cutting pressure can be adjusted up to a maximum pressure of 200 tons,
Various stock cutting range from light paper to B-flute,
Special stripping device and gripper edge waste removal device for easy waste removal,
The brush push down device and jogging device to ensure proper delivery stacking,
Complete set of stripping tools included with machine,
High quality, brand name electrical components on entire machine
Reference #820SEV02

DATE OF MANUFACTURE:

NEW OR PREVIOUSLY OWNED:

New Equipment

UNDER POWER:

CURRENTLY IN OPERATION:

GENERAL SPECIFICATIONS:

Maximum Paper Size : 815 x 605 mm (32.08” x 23.81”)
Minimum Paper Size : 320 x 280 mm (12.59” x 11.02”)
Maximum Cutting Size : 805 x 590 mm (31.69” x 23.22”)
Minimum Gripper Margin : 9.5 mm (0.374”)
Maximum Cutting Pressure : 200 Tons
Inner Chase Size : 926 x 618 mm (36.45” x 24.33”)
Cutting Plate Size : 848 x 600 mm (33.38” x 23.62”)
Paper Thickness (Stock Range) : 0.1 – 2 mm (80~1400gsm)
Corrugated Paper : Up to 4mm
Height of Cutting Rules : 23.6 mm (0.929”)
Maximum Cutting Speed : 8,000 cycles per hour
Register Tolerance : +/- 0.075mm
Total Power : 15 KVA
Main Machine Power Required : 220 V, 60 Hz, 3-Phase, 40A
Machine Dimensions (L x W x H) : 5017 x 1869 x 1844 mm (16.45’ x 6.13’ x 6.04’)
Total Weight (approx.) : 10.0 Tons
Feeder Pile Height with Pallet : 900 mm (35.43”)
Feeder Pile Height with Pallet

(without non-stop)

 : 1000 mm (39.37”)
Delivery Pile Height : 740 mm (29.13”)
Feeder pile Height with 300 mm Elevation

(Optional)

 : 1300 mm (51.18”)
Gripper Bite (minimum) : 3 mm (0.118”)

*Specifications may change without notice
