NEW Book Edge Digital Printing Machine, Model 210BE

Home>New Equipment>New Bindery Equipment>NEW Book Edge Digital Printing Machine, Model 210BE

MATCH PRODUCT I.D.:

I.D.#210BE

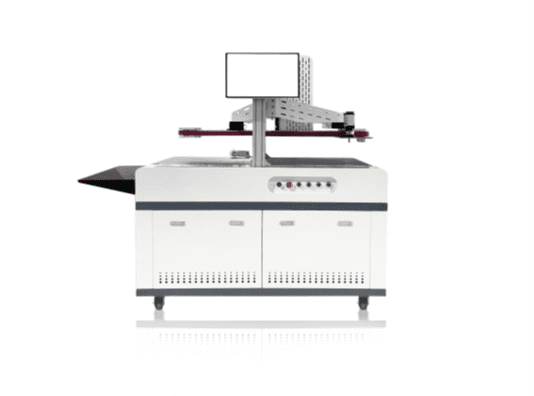

NEW Book Edge Digital Printing Machine, Model 210BE
NEW Book Edge Digital Printing Machine, Model 210BE

EQUIPMENT VIDEOS

  • Videos Listed Below If Available

EQUIPMENT OVERVIEW

MANUFACTURER:

PRODUCT CATEGORY:

,

EQUIPMENT NAME:

NEW Book Edge Digital Printing Machine, Model 210BE

DESCRIPTION:

NEW Book Edge Digital Printing Machine, Model 210BE
The 210BE book edge digital printing machine matches the full set of digital printing process
High precision, high efficiency, low loss
Equipped with the full printing process so that the production operation is simple and easy
It is the perfect digital printing solution for digital book edge printing
Free layout, no waiting time, no printing plate needed
Import and print in seconds
The speed of the assembly line can reach 40 meters per minute
Color CMYK 4-color printing can be a substitute for the traditional screen printing that cannot be achieved in color printing
Variety of small batch customization
Color printing, Quick output
Reference #210BE

DATE OF MANUFACTURE:

NEW OR PREVIOUSLY OWNED:

NEW

UNDER POWER:

CURRENTLY IN OPERATION:

GENERAL SPECIFICATIONS:

Specifications:




Ink : Pigment
Resolution : 1200DPI Max
Printing Width : 210 mm (8.26”)
Book Width : 70 mm – 300 mm (2.75” x 11.81”)
Book Thickness : 0 mm – 230 mm (0” – 9.05”)
Book Height : 70 mm – 300 mm (2.75” x 11.81”)
Printing Speed : 0-40 meters/min (0-131’/min)
Support Color : CMYK Color
Printing Mode : Single / Multi-Book
Input Power : 220v 50Hz/60Hz
Machine Power : 2.5 KW
Weight : 350 kg (771 lbs)
Operating System : WIN7/WIN10
Support Format : MP / JPG /  PDF/ TIFF
Working Environment : temperature 15-35 ℃ relative humidity 20%-80%
Dimensions : 1500mm x 900mm x 1500mm (4.92’ x 2.95’ x 4.92’)
