*NEW* Datien CT-115S Paper Cutter

Home>New Equipment>New Bindery Equipment>*NEW* Datien CT-115S Paper Cutter

MATCH PRODUCT I.D.:

I.D.#CT-115S

Datien CT-115S

EQUIPMENT VIDEOS

  • Videos Listed Below If Available

EQUIPMENT OVERVIEW

MANUFACTURER:

Datien

PRODUCT CATEGORY:

,

EQUIPMENT NAME:

*NEW* Datien CT-115S Paper Cutter

DESCRIPTION:

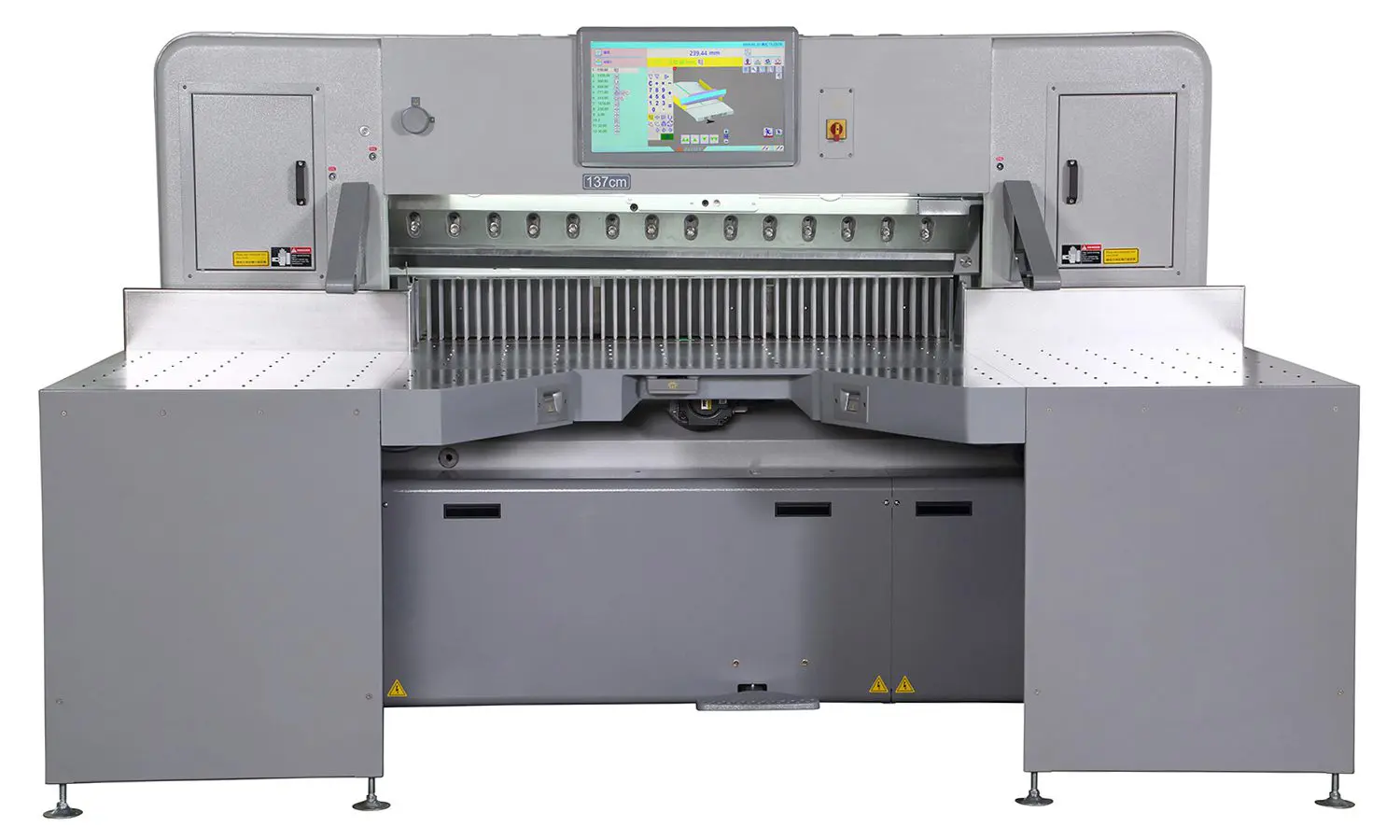

*NEW* Datien CT-115S 45” High Speed Cutting Machine
Double Knife Drive Arms, Clamp Pressure Adjustment Wheel,
Knife Drive Arms Overload Device, Infra-red Light Barrier,
Mechanical Knife Lifting Device, Powerful Electromagnetic Brake – Clutch,
Oil-less Brushing & Abrasion-proof Bearing Plate,
Ball Bearing Lead Screw & Linear Bearing Slide-rail,
Mitsubishi AC Servo Controlling Program,
Computerized Controlled Backguage Positioning, 10.4” Color LCD Monitor Survey, Safety Latch for Knife Carrier,
Table Slot Cover, Optical Cutting Line
Reference #CT-115S

DATE OF MANUFACTURE:

NEW OR PREVIOUSLY OWNED:

New Equipment

UNDER POWER:

CURRENTLY IN OPERATION:

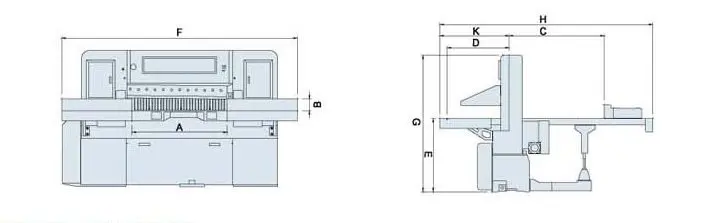

GENERAL SPECIFICATIONS:

A.    Cutting Width : 115cm (45.25”)
B.    Cutting Height : 16.5cm (6.3”)
C.   Cutting Length : 115cm (45.25”)
D.   Front Table Length : 75cm (29.5”)
E.    Table Height : 90cm (35.4”)
F.    Machine Width : 290cm (114”)
G.   Machine Height : 168cm (66”)
H.   Machine Length : 270cm (106.3”)
K.    Machine Front Length : 89cm (35”)
Smallest Cut-with Clamp : 9cm (3.54”)
                Without Clamp : 3cm (1.18”)
Cutting Cycle Per Minute : 48
Clamp Pressure : 400-4000 kg (880 – 8,800 lbs)
Weight : 4100 kg (9,039 lbs)
Main Motor : 5.6 kw (7.5HP)
Backguage Motor : 0.5 kw (0.69HP)
Airblower for Table : 0.75 kw (1HP)
Power Requirement : 6.85 kw (9.19HP)

* Specifications may be changed for improvement without prior notice
