*NEW* SBL 1060EF Foil Stamper

Home>New Equipment>New Foil Stamping Equipment>*NEW* SBL 1060EF Foil Stamper

MATCH PRODUCT I.D.:

I.D.#1060EF

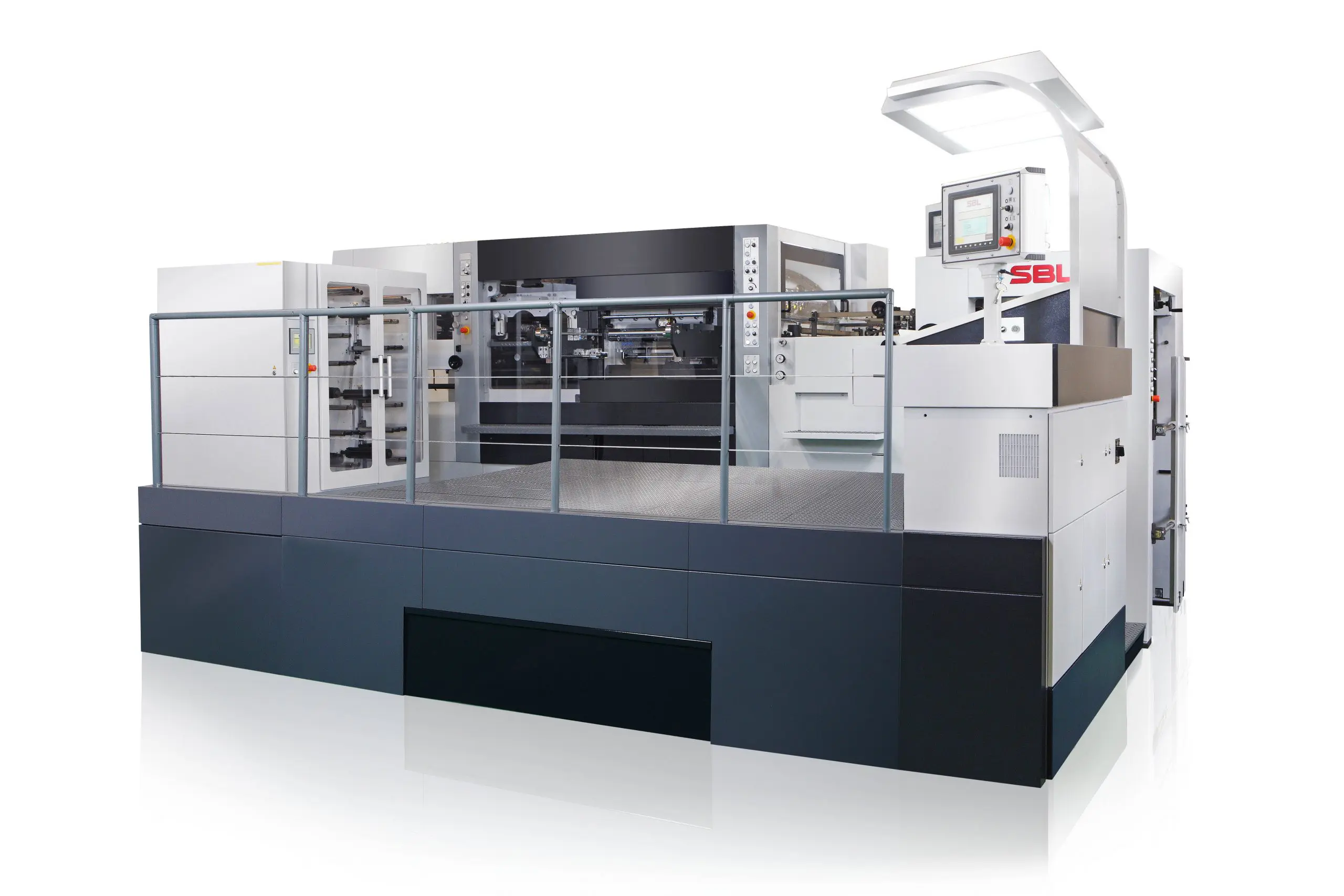

SBL 1060 EF

EQUIPMENT VIDEOS

EQUIPMENT OVERVIEW

MANUFACTURER:

SBL

PRODUCT CATEGORY:

,

EQUIPMENT NAME:

*NEW* SBL 1060EF Foil Stamper

DESCRIPTION:

*NEW* SBL 1060EF Foil Stamper
Brand new Foil Control System with full color Touch Screen panel,
New Foil Threading system for increased stability at higher speeds,
6 Shaft Foil Re-winder to ensure the proper foil rewind, including narrow foil,
20 Zones heater base with individual temperature control on the touch-screen,
Dual air blast for improved sheet stability and improved separation,
Large Cat-Walk for easy access during make-ready,
State-of-the-art sheet inspection table with overhead light,
Elevated machine, for higher pile in feeder and delivery,
Improved feeder for handling paper stock,
Equipped with head-stop and side guide sensors,
300 metric tons of pressure for die cutting and foil stamping,
Honey-comb base for easy locking of stamping/embossing dies,
Retractable foil loading system,
Pneumatic locking device,
24mm base plate with 4-way micro adjustment
Reference #1060EF

DATE OF MANUFACTURE:

NEW OR PREVIOUSLY OWNED:

NEW

UNDER POWER:

CURRENTLY IN OPERATION:

GENERAL SPECIFICATIONS:

Maximum Paper Size : 1060 x 760 mm (41.73″ x 29.92”)
Minimum Paper Size : 400 x 350 mm (15¾” x 13.77″)
Maximum Cutting Size : 1045 x 745 mm (41.14” x 29.33”)
Maximum Cutting Pressure : 300 Tons
Paper Thickness (Stock Range)

Corrugated Paper

 : 0.1  – 2 mm (0.0039” – 0.078″) (80~1400gsm)

Up to 4 mm (0.157”)
Register Tolerance : +/- 0.075 mm (+/-0.0029”)
Minimum Gripper Margin : 11 mm (0.433”)
Inner Chase Size : 1075 x 769 mm (42.32″ x 30.27″)
Cutting Plate Size : 1076 x 756 mm (42.36″ x 29.76″)
Height of Die Cutting Rules : 23.6 mm (0.9291”)
Maximum Cutting Speed : 8,000 cycles per hour
Feeder Pile Height with Pallet : 1350 mm (53.14”)
Feeder Pile height with Pallet (without

Non-stop)

 : 1650 mm (64.96”)
Delivery Pile height : 1350 mm (53.14”)
Main Machine Power Required : 220 V, 60 Hz, 3-Phase, 110A, 20KVA
Machine Dimensions (L x W x H) : 5885 x 2310 x 2619 mm  (19.3’ x 7.57’ x 8.59’)
Total Weight (approx.) : 20 Tons (40,000 lbs)

EQUIPMENT DOCUMENTATION

  • Documents Listed Below if Available

https://matchmachinery.com/wp-content/uploads/2024/05/SBL-1060EF-Brochure-1.pdf
