EQUIPMENT DETAILS

Match Machinery provides the following cursory details for this piece of equipment.  Please contact us for answers to your specific questions about the machine.  In addition to general sales questions, our service department can provide additional information concerning the machine’s operating condition, installation requirements, etc.  Please refer to the Match Machinery product I.D. just above the grey column at the right.

MATCH PRODUCT I.D.:

I.D.#TS-550WL

EQUIPMENT VIDEOS

EQUIPMENT OVERVIEW

MANUFACTURER:

SBL

PRODUCT CATEGORY:

EQUIPMENT NAME:

*NEW* SBL TS-550WL

DESCRIPTION:

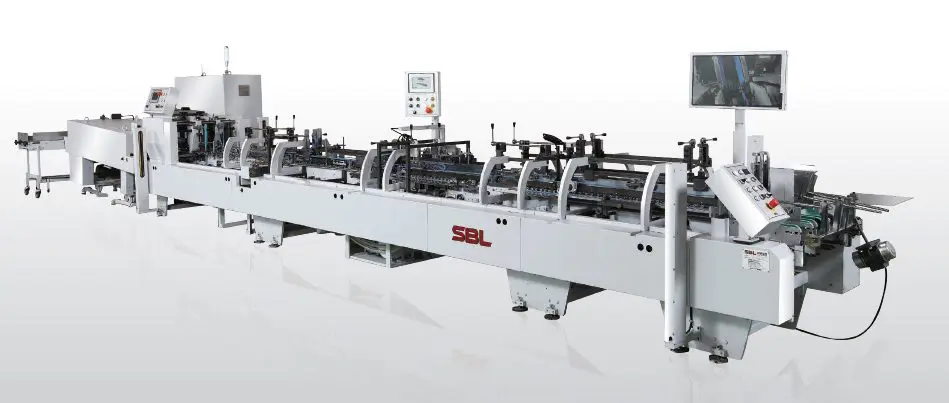

NEW SBL TS-550WL Straight Line Box Folder-Gluer
Equipped with Pre-Folding Section, Feeder Vibrator,
Wireless remote control for easy operation and high mobility.
Individually adjustable feeding belts (suction belt optional).
Pneumatic lifter on feeder and patented feeding mechanism can easily adjust for different sheets width.
Position indicator on all carriers to ensure easy and quick adjustment of carrier position.
PLC program control system suitable for autolockbottom boxes, double wall boxes and standard straight-line boxes.
Heavy duty inverter for main motor and timing belt for driving motor.
Max. machine speed of 300m/min, high efficiency, low noise, durable and easy to maintain.
Standard lower left and right glue pots, easy to remove and clean. (Upper glue pots are optional)
Easy Replacement of operating belt does not require the removal of any shaft.
Adjustable pressing roller after final fold section allows for different flatness requirements.
Standard machine includes independent electrical cabinet, touch screen monitor setting system and kicker device.
Independent inverter for feeder section ensures automatic, accurate and continuous feeding.
Stock Type: Cardboard. E-Flute, Corrugated and Decorated Board
Folding Capabilities: Straight-line Folding, Double Sided and Crashlock Bottom Boxes
Max. Mechanical Machine Speed: 300 m/minute
Pre-Folding: No. 1 creasing line 180º, No. 3 creasing line 135º
Feeder Type: Automatic and continuous feeding
Glue: Emulsion type (fluid)
Reference #TS-550WL

DATE OF MANUFACTURE:

NEW OR PREVIOUSLY OWNED:

New Equipment

UNDER POWER:

Unknown

CURRENTLY IN OPERATION:

Unknown

GENERAL SPECIFICATIONS:

Stock Type :Cardboard. E-Flute, Corrugated and Decorated Board
Folding Capabilities :Straight-line Folding, Double Sided and Crashlock Bottom Boxes
Max. Mechanical Machine Speed :300 m/minute
Pre-Folding :No. 1 creasing line 180º, No. 3 creasing line 135º
Feeder Type :Automatic and continuous feeding
Glue :Emulsion type (fluid)
Power Requirements :8.5 KW, AC 220V
Net Weight (approx.) :3,841 Kg (8,468 lbs)
