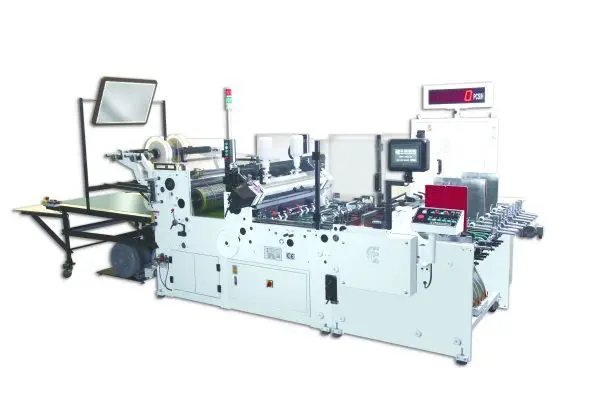

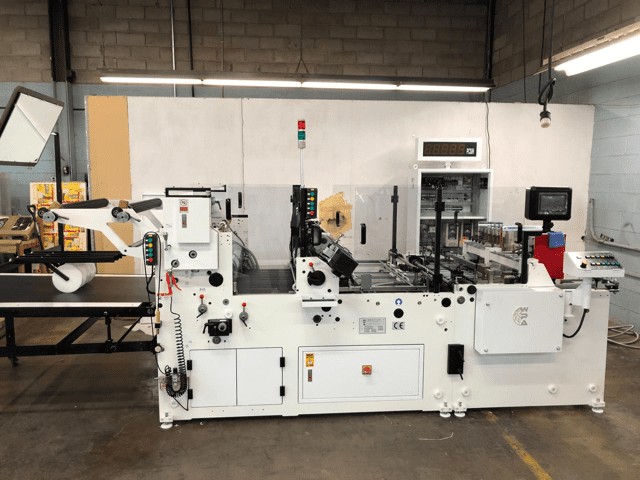

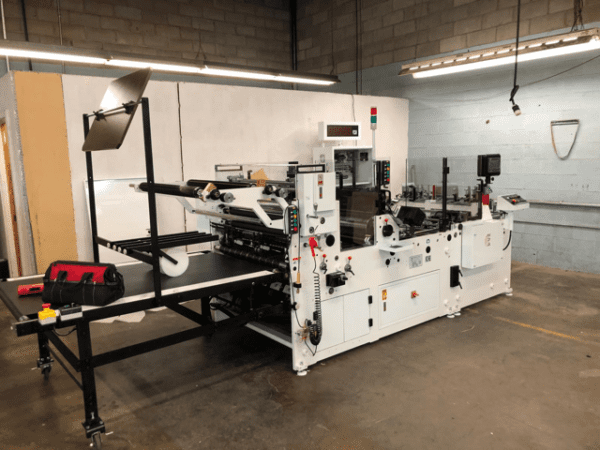

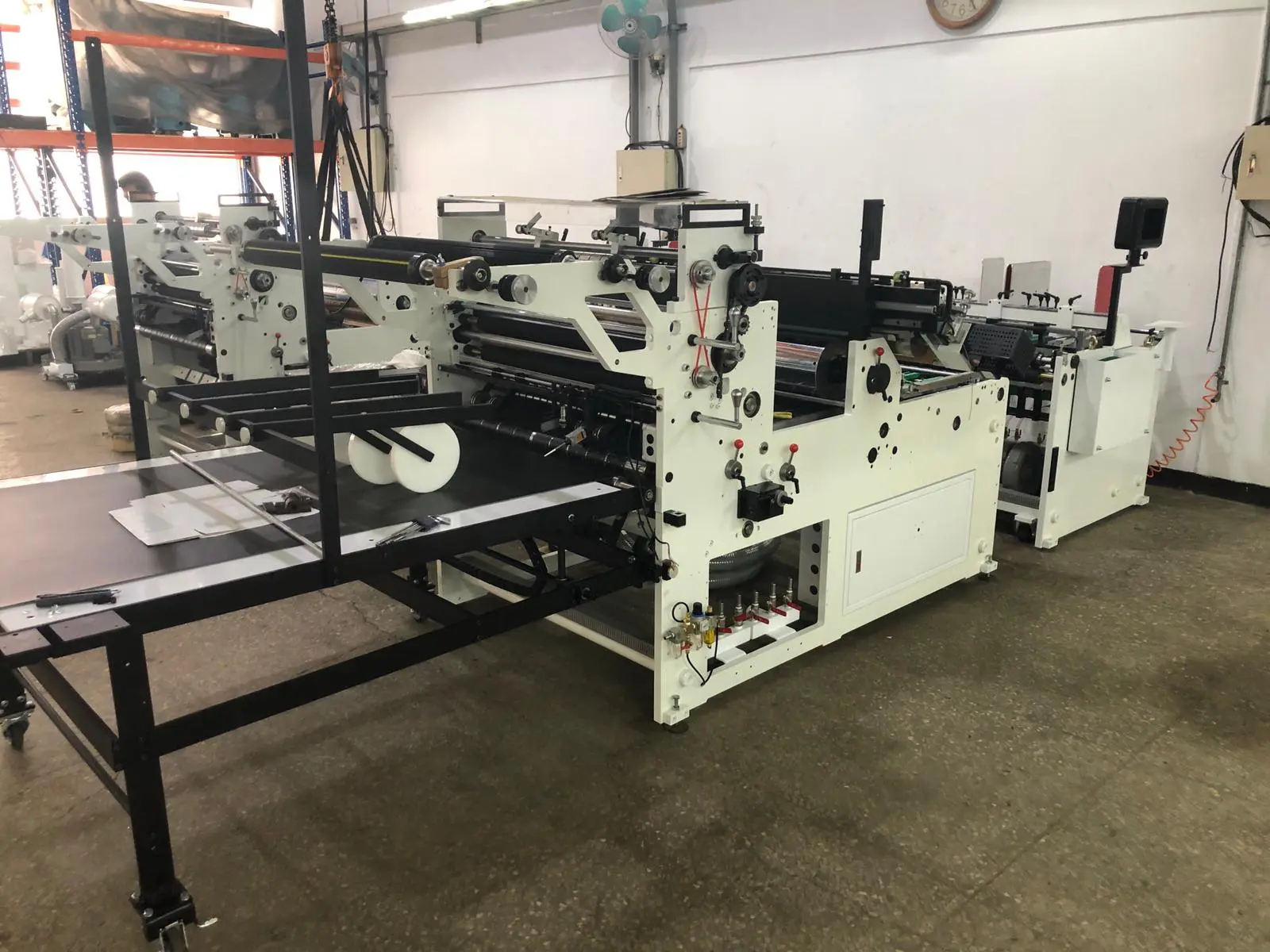

*NEW* Platinum WPA-1000DSV Window Patcher

Home>New Equipment>New Window Patchers>*NEW* Platinum WPA-1000DSV Window Patcher

MATCH PRODUCT I.D.:

I.D.#WPA-1000 DSV

EQUIPMENT VIDEOS

  • Videos Listed Below If Available

EQUIPMENT OVERVIEW

MANUFACTURER:

Platinum

PRODUCT CATEGORY:

,

EQUIPMENT NAME:

*NEW* Platinum WPA-1000DSV Window Patcher

DESCRIPTION:

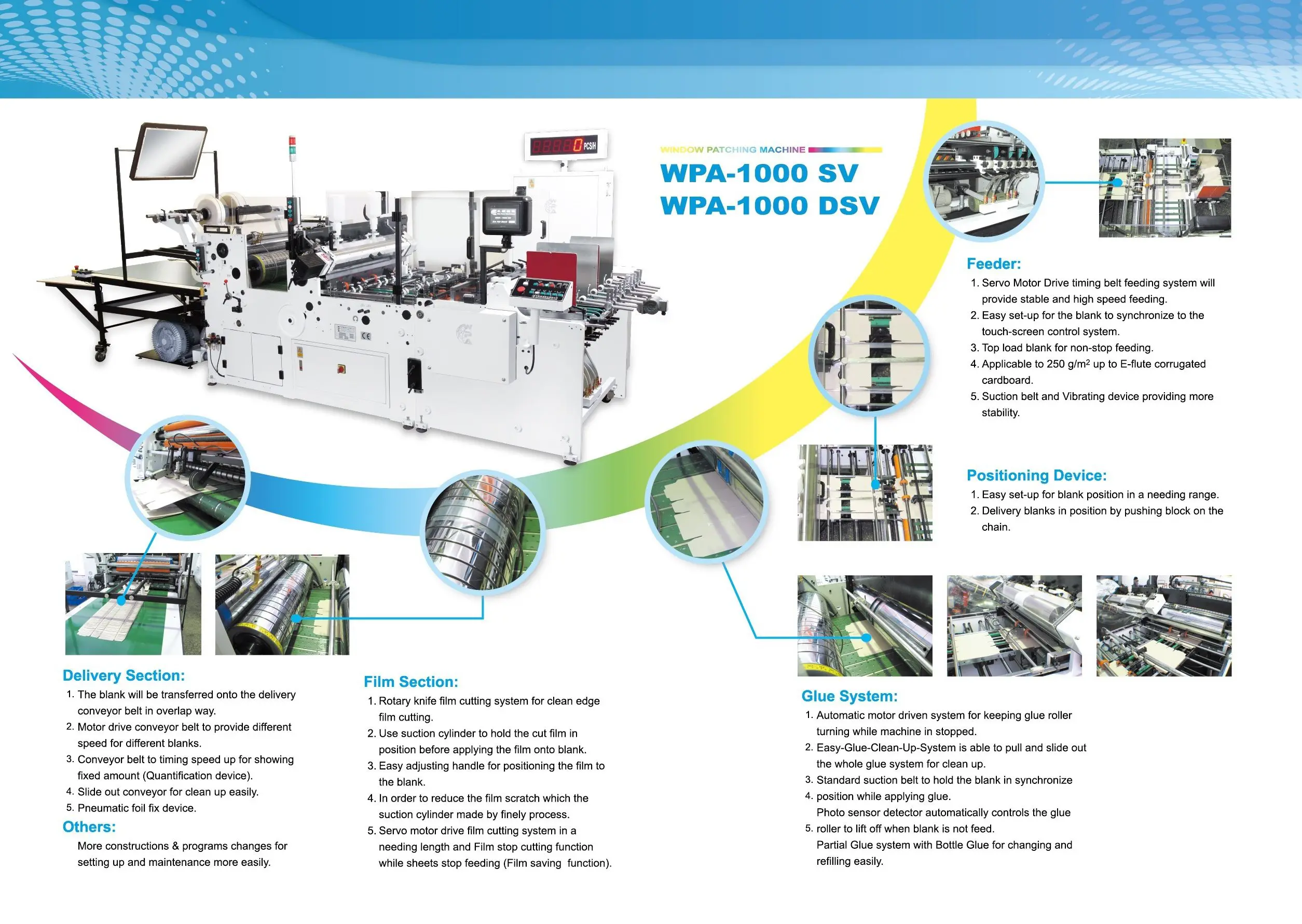

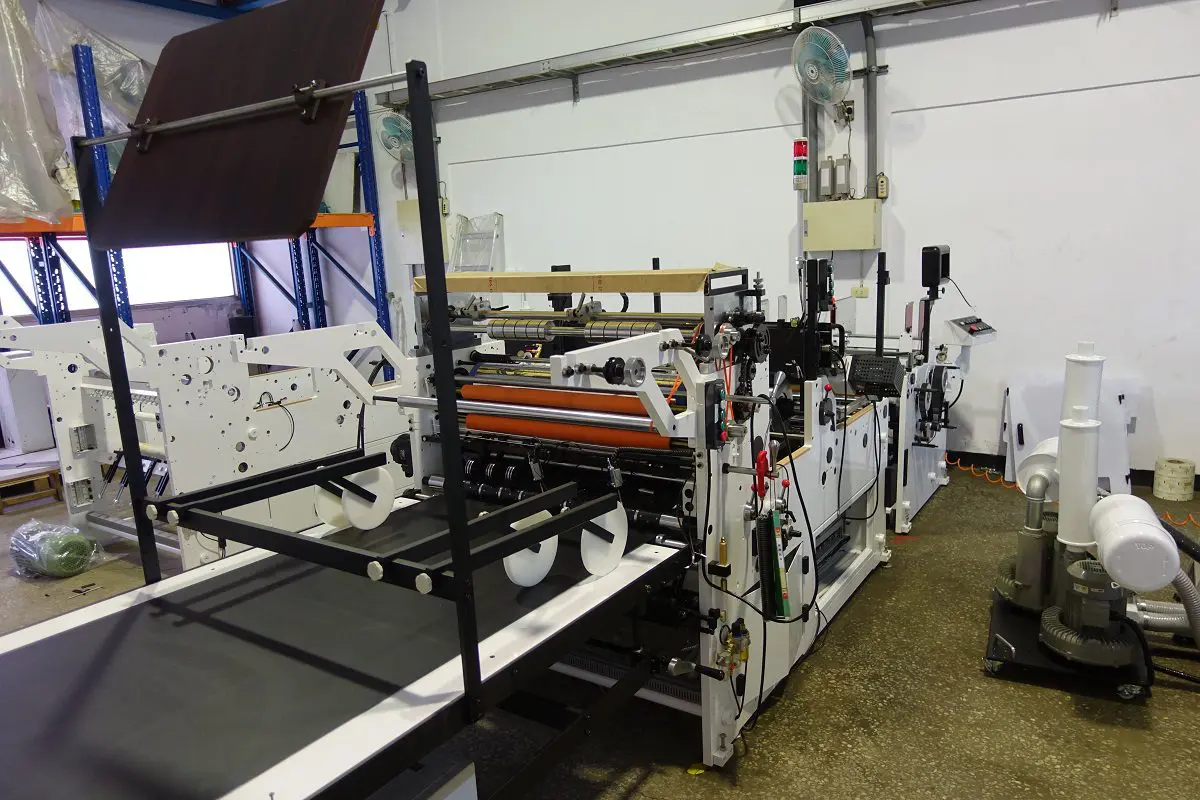

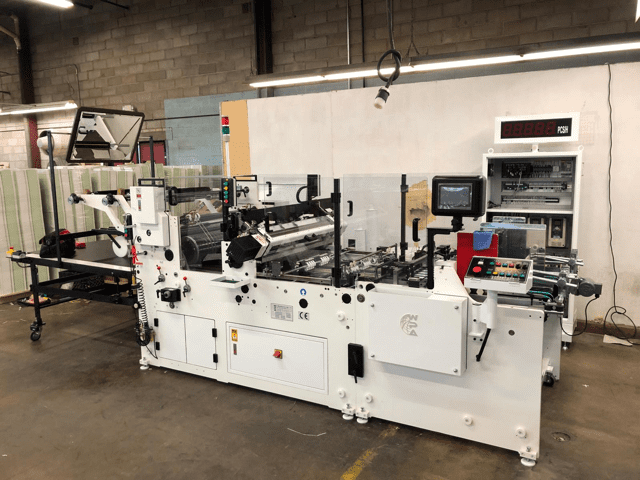

*NEW* Platinum WPA-1000DSV Window Patcher
Servo Motor Driven Feeder Timing Belt System,
Servo Motor Driven Rotary Knife Film Cutting System,
Timed Delivery Conveyor Belt for Batch Counting,
Vacuum Suction Belts in Delivery Section,
Easy adjustment for running 1up or 2up position,

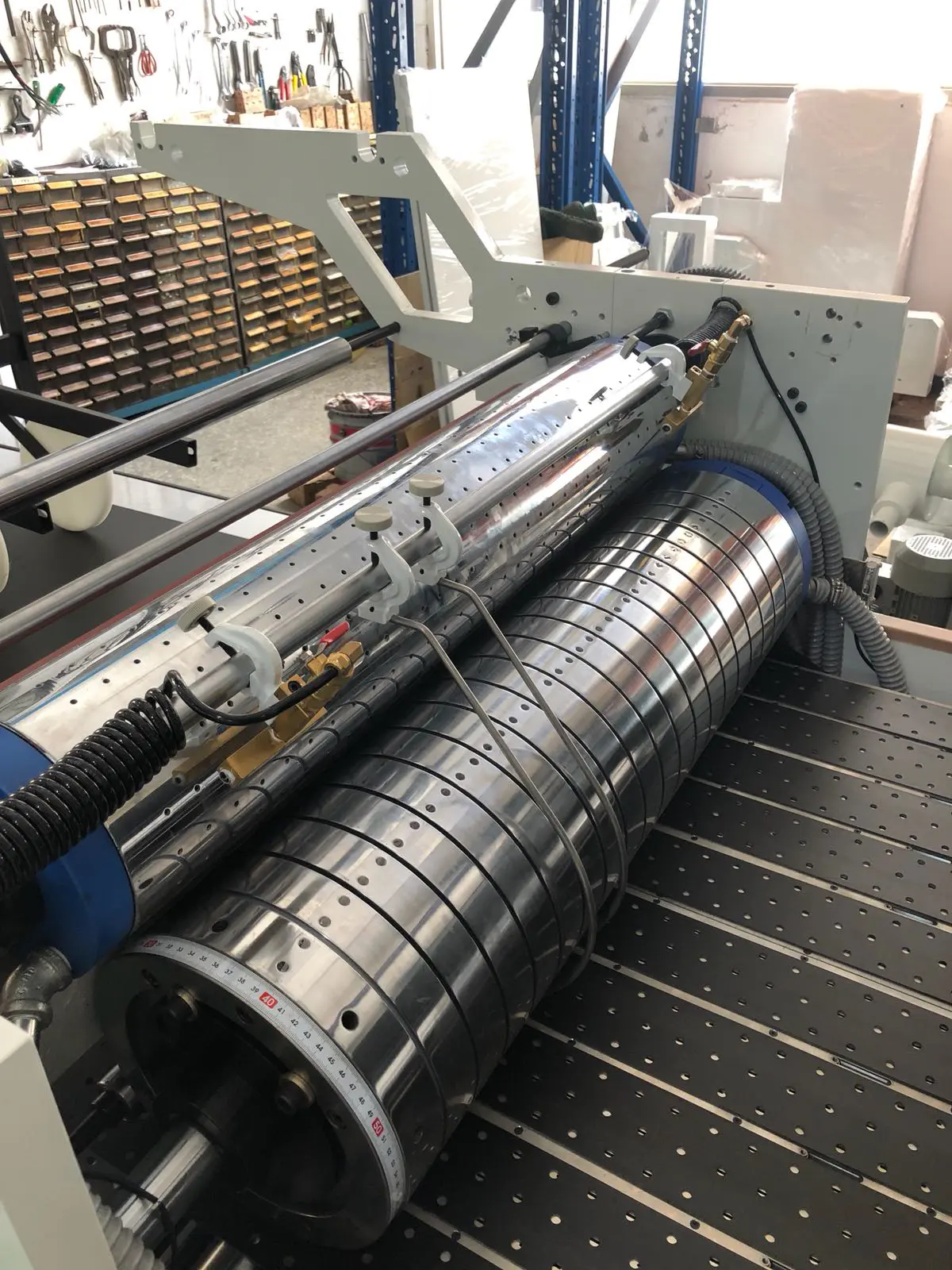

Special treatment of the film cylinder to minimize film scratching,
30mm Main machine side frames for increased machine stability,
Standard suction belt to hold the blank in synchronized position while applying glue,
Photo sensor detector automatically controls the glue roller to lift off when blank is not fed,

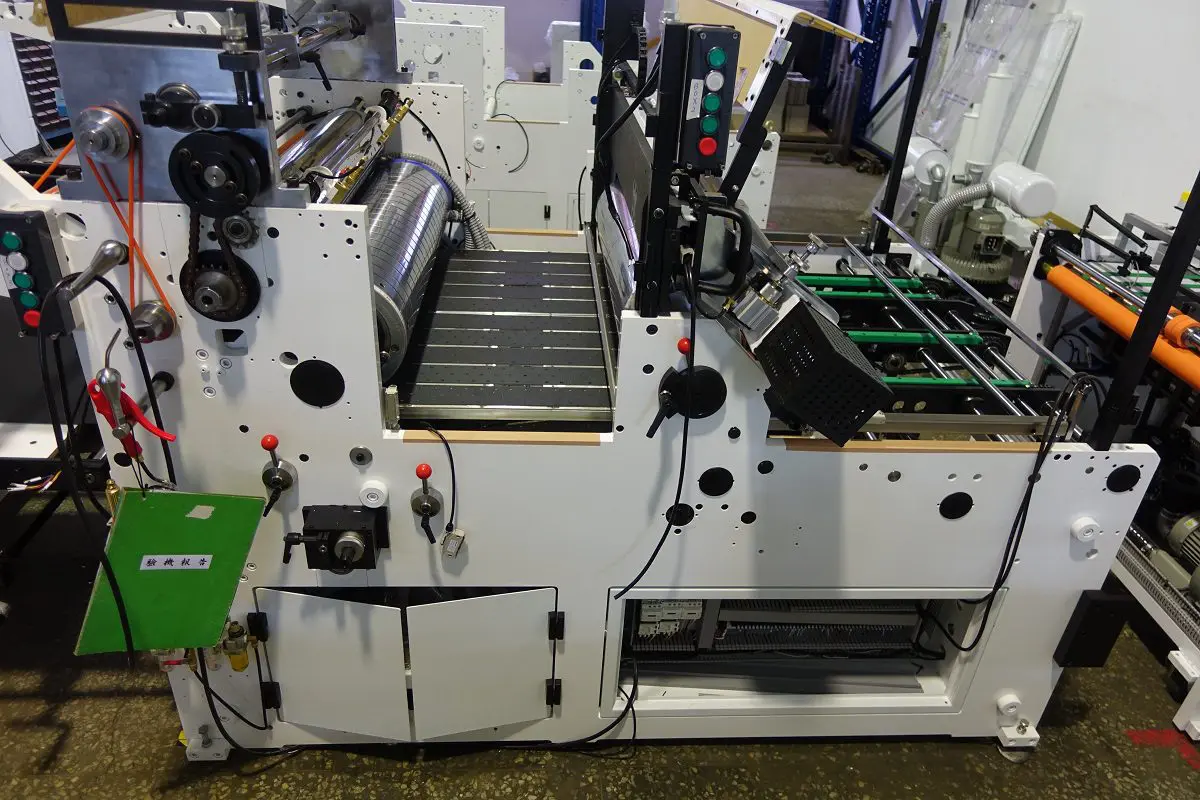

The glue station slides out for easy cleaning and access to the rollers,
The gluing rollers adjust forward and backwards, left and right for easy positioning and registration of substrate,
Blank Length: 100mm ~ 710mm, Blank Width: 80mm ~ 480mm,
Film Length: 38mm ~ 520mm, Film Width: 30mm ~ 400mm,
Film Thickness: 0.03mm~0.20mm (Straight Preparation),
Feed Material: Cardboard, E-flute Corrugated Cardboard,
Film Roll Specification: 400mm (16”) Roll, 3” Core
Max Working Speed: Length over 330mm: 300 sheets/min,
Length less than 330mm: 600 sheets/min,
CE Certified
Reference #WPA-1000DSV

DATE OF MANUFACTURE:

NEW OR PREVIOUSLY OWNED:

New Equipment

UNDER POWER:

Unknown

CURRENTLY IN OPERATION:

Unknown

GENERAL SPECIFICATIONS:
