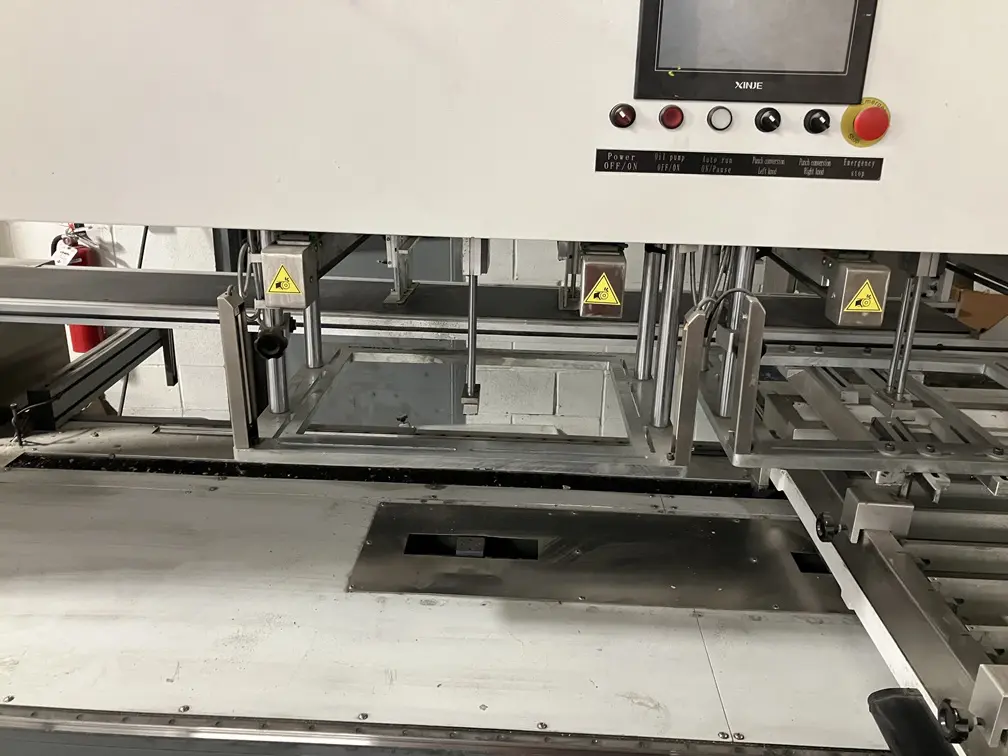

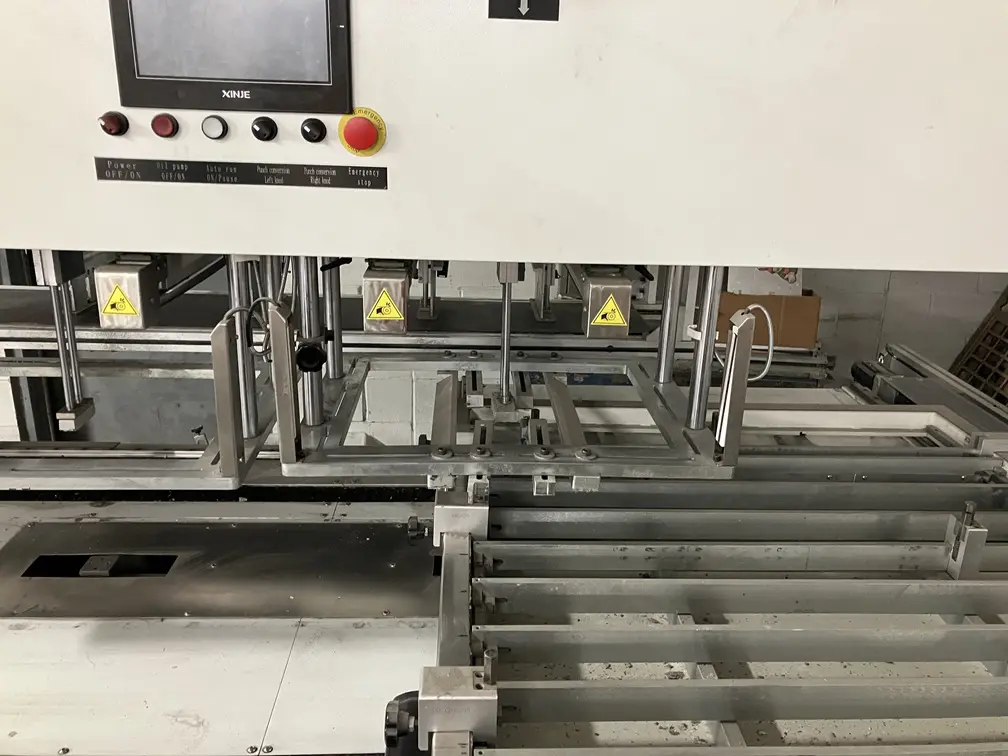

2019 Platinum PB-102 AII
Fully-Automatic Dual-head blanking system for running sheets with nested blanks,
Heavy-Duty, quality-built gantry structure main frame,
Frame style supporting base for precision blanking action ensuring damage free loads,
Equipped with high-precision linear bearing rails and servo motors for smooth and precise frame movement,
Operator friendly touch screen for quick and simple programing,
Automated loading to conveyor to reduce labor and increase blanking speed,
Max Sheet Size: 1020 x 960mm (40.15″ x 37.8″),
Min. Sheet Size: 300mm x 300mm (11.8″ x 11.8″),
Max. Blank Size: 450mm x 350mm (17.7″ x 13.8″),
Min. Blank Size: 35mm x 60mm (1.4″ x 2.4″),
Maximum Working Pressure: 2.5,
Pile Height: 50mm – 85mm (2″ – 3.3″),
Speed: 20 Cycles / Hour
Reference #250001
EQUIPMENT DETAILS
Match Machinery provides the following cursory details for this piece of equipment. Please contact us for answers to your specific questions about the machine. In addition to general sales questions, our service department can provide additional information concerning the machine’s operating condition, installation requirements, etc. Please refer to the Match Machinery product I.D. just above the grey column at the right.
MATCH PRODUCT I.D.:
I.D.#250001
EQUIPMENT OVERVIEW
MANUFACTURER:
PRODUCT CATEGORY:
EQUIPMENT NAME:
2019 Platinum PB-102 AII
DESCRIPTION:
2019 Platinum PB-102 AII Fully-Automatic Dual-head blanking system for running sheets with nested blanks, Heavy-Duty, quality-built gantry structure main frame, Frame style supporting base for precision blanking action ensuring damage free loads, Equipped with high-precision linear bearing rails and servo motors for smooth and precise frame movement, Operator friendly touch screen for quick and simple programing, Automated loading to conveyor to reduce labor and increase blanking speed, Max Sheet Size: 1020 x 960mm (40.15" x 37.8"), Min. Sheet Size: 300mm x 300mm (11.8" x 11.8"), Max. Blank Size: 450mm x 350mm (17.7" x 13.8"), Min. Blank Size: 35mm x 60mm (1.4" x 2.4"), Maximum Working Pressure: 2.5, Pile Height: 50mm - 85mm (2" - 3.3"), Speed: 20 Cycles / Hour Reference #250001
DATE OF MANUFACTURE:
2019
NEW OR PREVIOUSLY OWNED:
Previously Owned
UNDER POWER:
CURRENTLY IN OPERATION:
GENERAL SPECIFICATIONS:
2019 Platinum PB-102 AII
Max Sheet Size: 1020 x 960mm (40.15″ x 37.8″),
Min. Sheet Size: 300mm x 300mm (11.8″ x 11.8″),
Max. Blank Size: 450mm x 350mm (17.7″ x 13.8″),
Min. Blank Size: 35mm x 60mm (1.4″ x 2.4″),
Maximum Working Pressure: 2.5,
Pile Height: 50mm – 85mm (2″ – 3.3″),
Speed: 20 Cycles / Hour
Reference #250001
