2016 GMC-TC 1600 Dual Rotary Direct Drive Precision High Speed Sheeter
Upgrade to Tidland Class II Slitter System (3) Sets,
Grid System for Continuous Skid Delivery,
Additional (1) set of rollstand,
Fine Paper Delivery System,
Small Bar De-Curl for Fine Paper,
Total (4) Sets of Small De-Curler System for 2x Standard Dual Position Roll Stand,

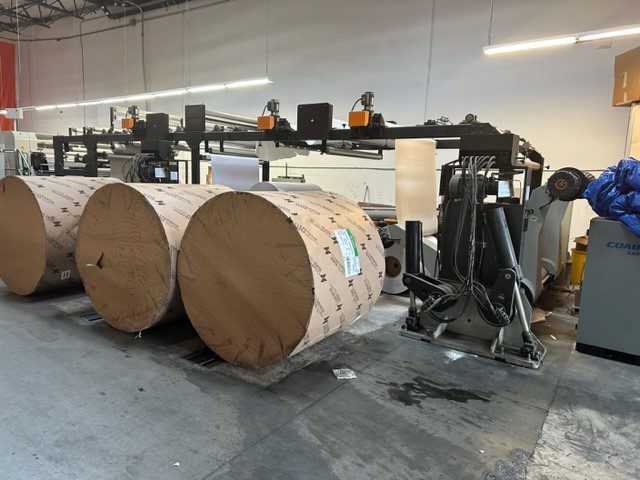

Roll Stand Diameter: 72”,
Core sizes: 3” and 12” with option for 16”,

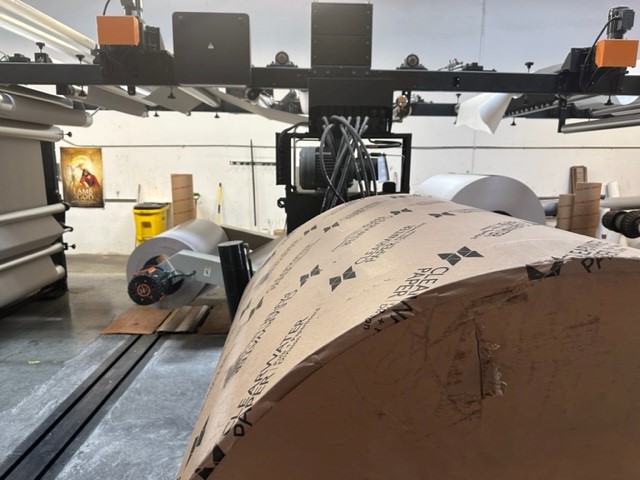

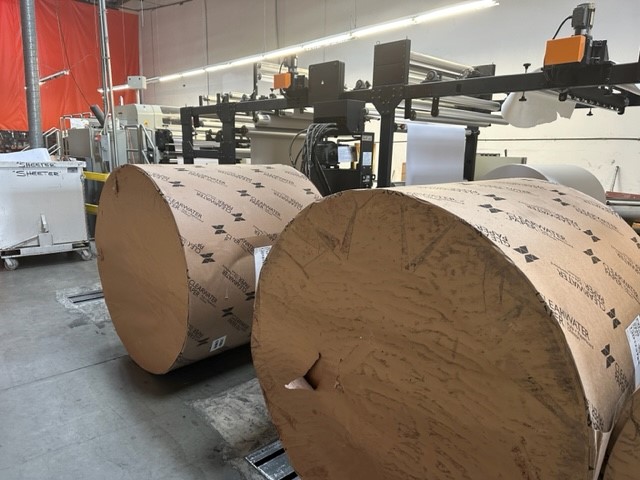

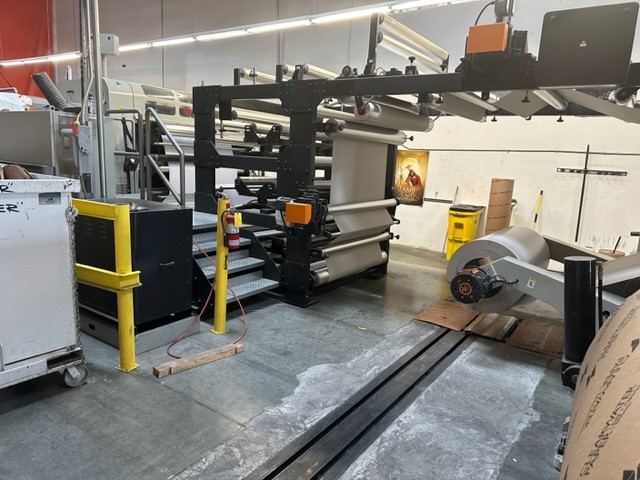

Two in-floor tracks with trolleys, Heavy-duty dual position roll stands with RE pneumatic brake and PID control system,

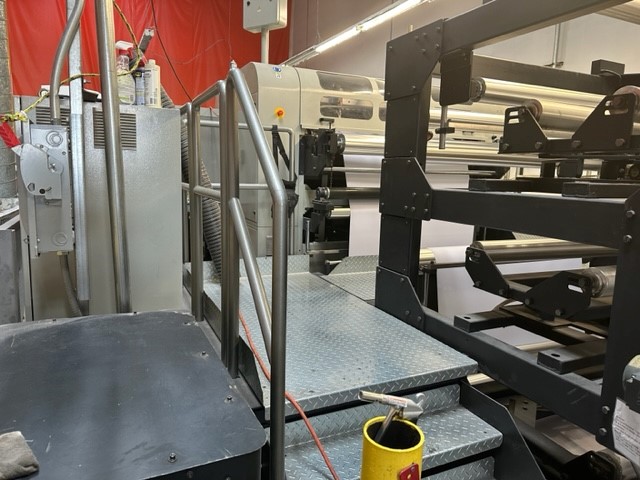

Side-by-side cutting capability for paperboard, OSHA standard catwalk system at infeed to allow both webs to pass through under catwalk into machine,
Machine stop on preset roll diameter, 10” of large diameter guide rolls on roll stand bridge, Edge guidance system,

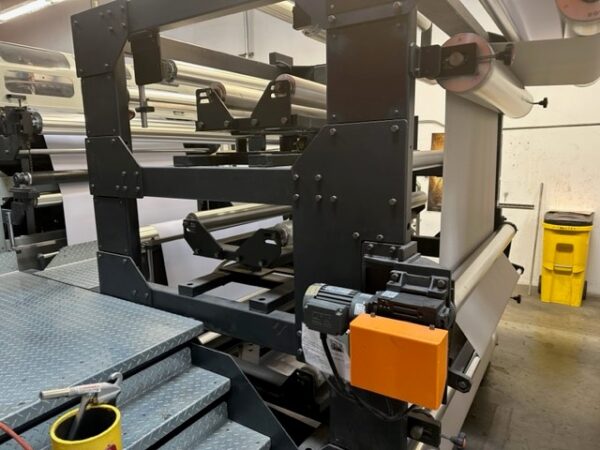

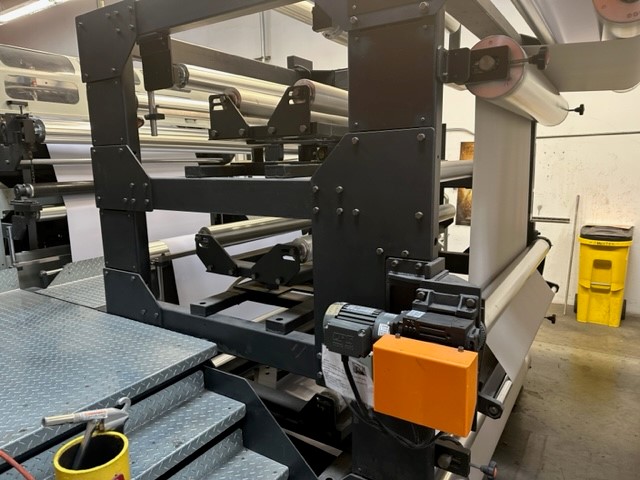

Four sets of motorized de-curler stations with remote control switches and digital display including two sizes of de-curler bars (choose between 35mm, 50mm and 75mm – select two bar sizes for each station),
Automatic tension system for each web with Dancer roller system, Pneumatic slitter unit with 150mm (6”) diameter blade,

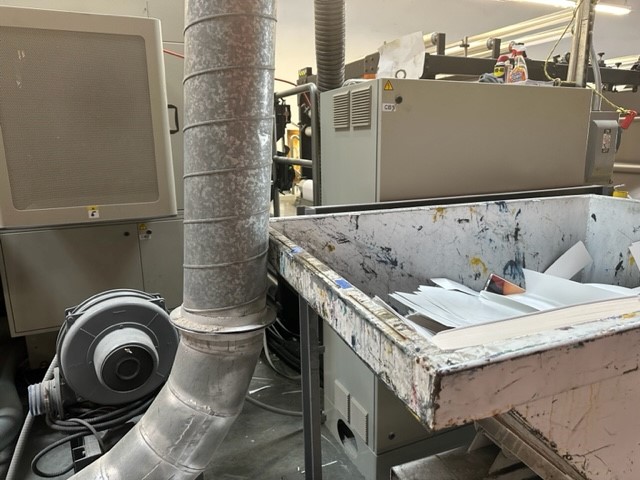

Heavy duty side trim blowers – 2 sets, Paper dust cleaning system with web edge brush cleaning device,
Dual rotary direct drive knife with infeed pull roll system, On machine knife sharpening system,
High speed adjustable outfeed section with jam detection, Top and bottom sheet cleaner with vacuum system,
Manual reject gate, Static neutralizing bars, Adjustable vacuum overlap with shoes and plows,
Overlap section with slowdown carriage and full width slow speed belt section,
Heavy duty hydraulic scissors lift with dual directional discharge, inline and drive side,
Max. 60” high delivery piler (additional 3” for pallet jack lifting), Mechanical vibrating front stop and fixed full width back stop,
Manual adjustable side joggers, Touch screen operator console integral to knife with order entry and diagnostics,

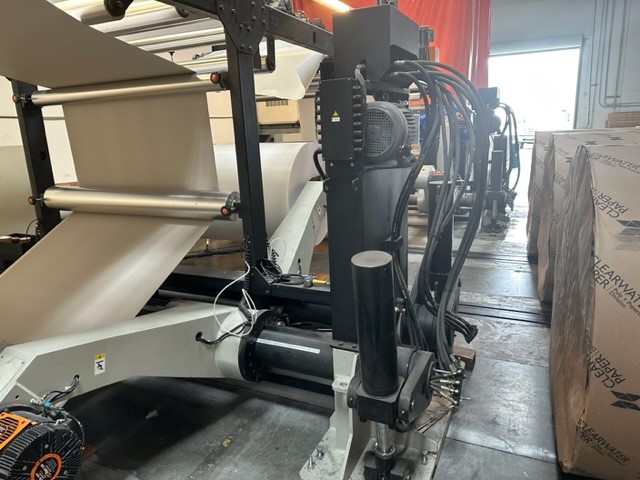

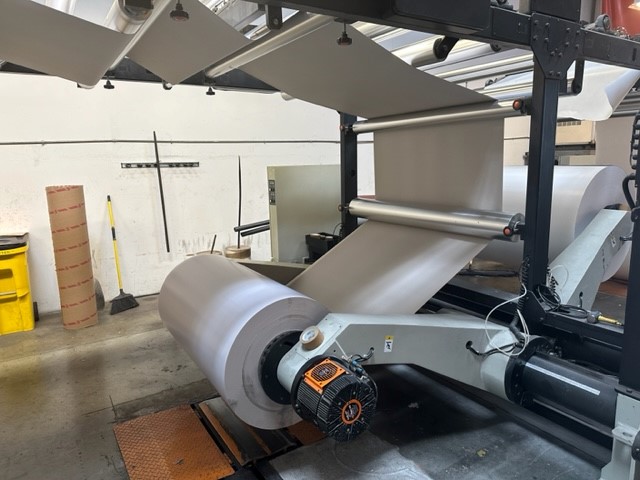

One Shaftless Dual Position Pivoting Arm Roll Stand, Web Conditioning, Slitter Section, Dual Rotary Knife Section,
Conveyor Device, Delivery section, Drive and Control System, Catwalk and handrail, Control panel and transformer
Reference #230020
