*NEW* SBL 1050 SE (V02) Automatic Die Cutting and Stripping Machine

Home>New Equipment>New Die Cutting Equipment>*NEW* SBL 1050 SE (V02) Automatic Die Cutting and Stripping Machine

MATCH PRODUCT I.D.:

I.D.#1050SEV02

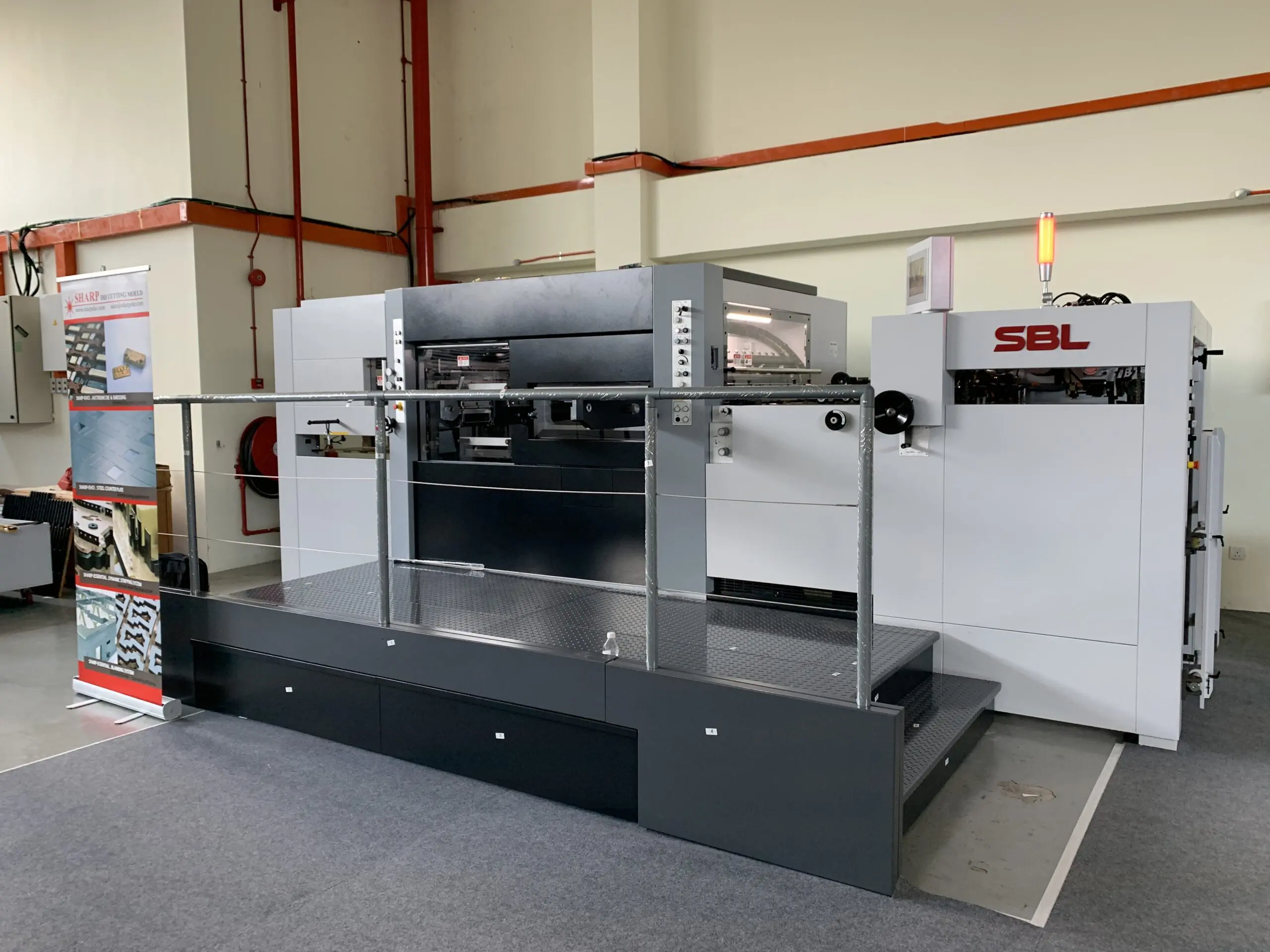

SBL-1050SE V02

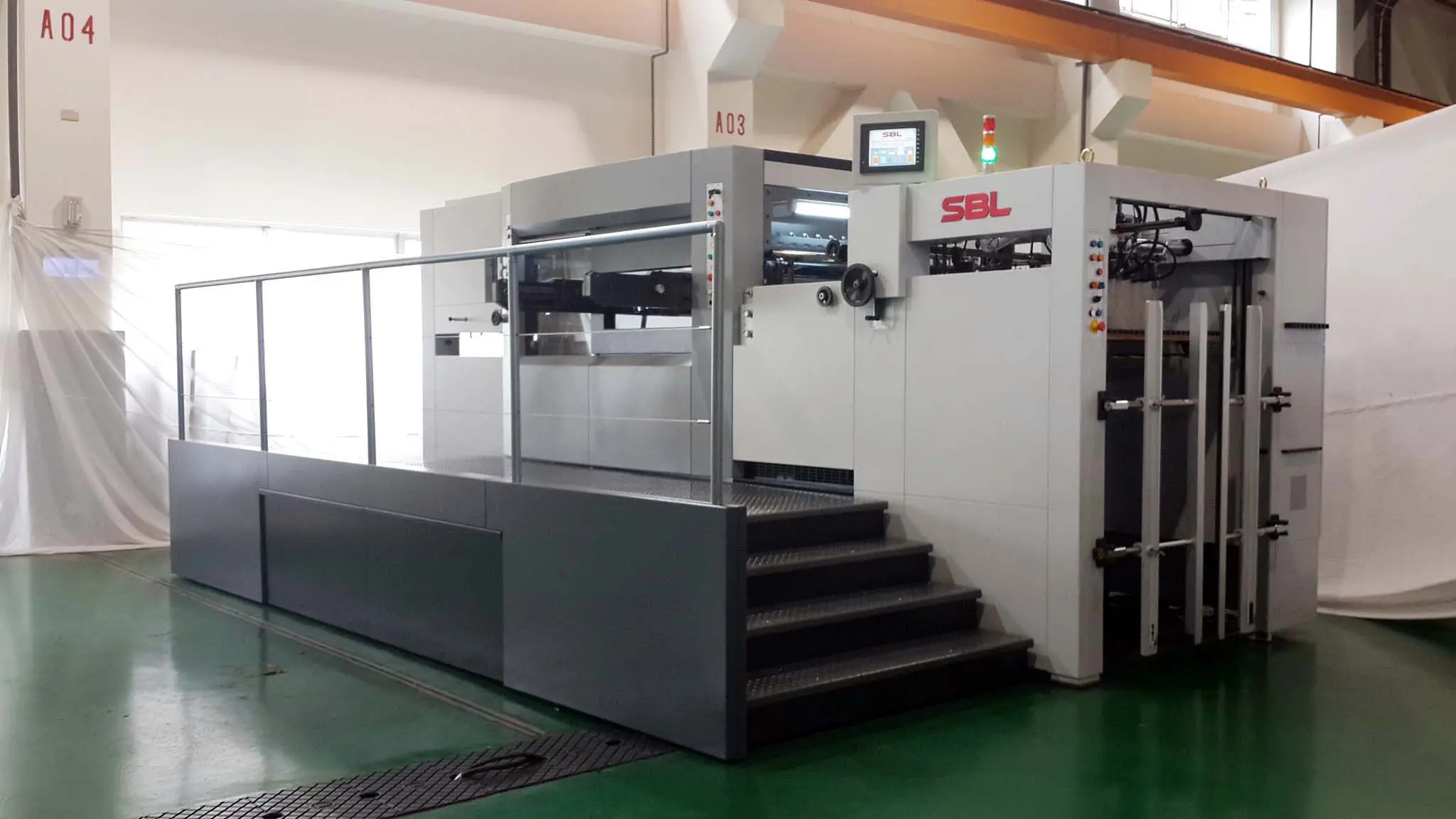

SBL-1050SE V02 Elevation

EQUIPMENT VIDEOS

EQUIPMENT OVERVIEW

MANUFACTURER:

SBL

PRODUCT CATEGORY:

,

EQUIPMENT NAME:

*NEW* SBL 1050 SE (V02) Automatic Die Cutting and Stripping Machine

DESCRIPTION:

*NEW* SBL 1050 SE (V02) Automatic Die Cutting and Stripping Machine
Wide feeding range from 400x370mm to 1050x750mm,
Non-stop device for feeder and delivery station can ensure continuing production,
The slow down device on feed table to ensure precise sheet feeding,
Double sheet and front lay register device can calibrate the sheet feeding,
Push or pull 2-in-1 side guide device to handle different stocks,
Touch screen monitor with computerized self-diagnostic system,
Cutting pressure can be adjusted according to the stock and the maximum pressure up to 300 tons,
Various stock cutting range from light paper to B-flute,
Special stripping device and gripper edge waste removal device for easy waste removal,
The brush and jogging device at delivery station can line up the sheet pile,
Equipped with PLC control system; monitoring machine statuses and controls the most critical components (i.e. electric motors, pneumatic valves, safety switches, etc.) with sensor feedback ensuring optimal safety and smooth operation,
Die chase with pneumatic locking device,
Counter plate with pneumatic locking device
Reference #1050SEV02

DATE OF MANUFACTURE:

NEW OR PREVIOUSLY OWNED:

New Equipment

UNDER POWER:

CURRENTLY IN OPERATION:

GENERAL SPECIFICATIONS:

Maximum Paper Size 1050 x 750 mm
Minimum Paper Size 400 x 370 mm
Maximum Cutting Size 1040 x 730 mm
Minimum Gripper Margin 9.5 mm
Maximum Cutting Pressure 300 Tons
Inner Chase Size 1144 x 760 mm
Cutting Plate Size 1080 x 736 mm
Paper Thickness (Stock Range) 0.1 – 2 mm(80~1400gsm)
Corrugated paper ≦4mm
Height of cutting rules 23.6mm
Maximum Cutting Speed 7,500 cycles per hour
Register Tolerance +/- 0.075mm
Total Power required 20KVA
Machine Dimensions  (L x W x H) 5683 x 2204 x 2132 mm
Total Weight (approx.) 16Tons
Feeder pile height with pallet 1000mm
Feeder pile height with pallet(without non-stop) 1200mm
Delivery pile height 840mm
Feeder pile height with 300mm elevation(optional) 1500mm
Gripper bite(minimum) 3mm

Specifications are subject to change without notice
