EQUIPMENT DETAILS

Match Machinery provides the following cursory details for this piece of equipment.  Please contact us for answers to your specific questions about the machine.  In addition to general sales questions, our service department can provide additional information concerning the machine’s operating condition, installation requirements, etc.  Please refer to the Match Machinery product I.D. just above the grey column at the right.

,

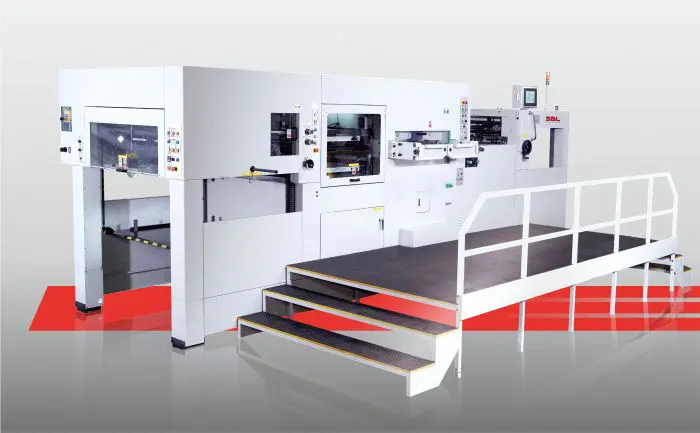

*NEW* SBL 1300 SE Die Cutting and Stripping Machine

Home>New Equipment>New Die Cutting Equipment>*NEW* SBL 1300 SE Die Cutting and Stripping Machine

MATCH PRODUCT I.D.:

I.D.#1300-SE

EQUIPMENT VIDEOS

  • Videos Listed Below If Available

EQUIPMENT OVERVIEW

MANUFACTURER:

SBL

PRODUCT CATEGORY:

,

EQUIPMENT NAME:

*NEW* SBL 1300 SE Die Cutting and Stripping Machine

DESCRIPTION:

*NEW* SBL 1300 SE Die Cutting and Stripping Machine
500 Metric Tons of Pressure for Heavy Die Cutting Jobs,
Improved Feeder for Handling Various Types of Paper,
Equipped with Head-Stop and Side Guide Sensors,
Complete Set of Stripping Tools Included with Machine,
Toggle Lubrication Oil Cooling System to Maintain Temperature,
Large Catwalk Platform for Easy Access During Make-Ready,
High Quality, Brand Name Electrical Components on Entire Machine,
(1) Set Harden Cutting Plate (Sandwich Style, 5mm + 1.5mm),
(1) Set Harden Cutting Plate (6.5mm), (2) Sets Die-locking Chase,
Max Sheet Size: 1300 x 950 mm (51″ x 37 2/5”),
Min Sheet Size: 600 x 450 mm (23 5/8 ” x 17¾”)
Reference # 1300-SE

DATE OF MANUFACTURE:

NEW OR PREVIOUSLY OWNED:

New Equipment

UNDER POWER:

N/A

CURRENTLY IN OPERATION:

N/A

GENERAL SPECIFICATIONS:

Maximum Sheet Size : 1300 x 950 mm (51″ x 37 2/5”)
Minimum Sheet Size : 600 x 450 mm (23 5/8 ” x 17¾”)
Maximum Cutting Size : 1290 x 940 mm (50 ¾” x 37”)
Maximum Cutting Pressure : 500 Tons
Stock Range : 0.1 – 2 mm (0.0039 – 0.07″)
Minimum Gripper Margin : 9.5 mm (3/8”)
Inner Chase Size : 1420 x 958 mm (56″ x 37¾”)
Face Plate Size : 1328 x 940 mm (52¼” x 37″)
Maximum Mechanical Speed : 6,000 cycles per hour
Variable Speed Main Motor : 20 HP (15 KW)
Total Power Required : 220 V, 60 Hz, 3-Phase, 75 Amp
Machine Dimensions : 26’ 6″ (L) x 14’ 8″ (W) x 7’ 4″ (H)
Total Weight (approx.) : 18 Tons  (39,600lbs)

EQUIPMENT DOCUMENTATION

  • Documents Listed Below if Available

SBL-1300-SE-Brochure.pdf
