EQUIPMENT DETAILS

Match Machinery provides the following cursory details for this piece of equipment.  Please contact us for answers to your specific questions about the machine.  In addition to general sales questions, our service department can provide additional information concerning the machine’s operating condition, installation requirements, etc.  Please refer to the Match Machinery product I.D. just above the grey column at the right.

,

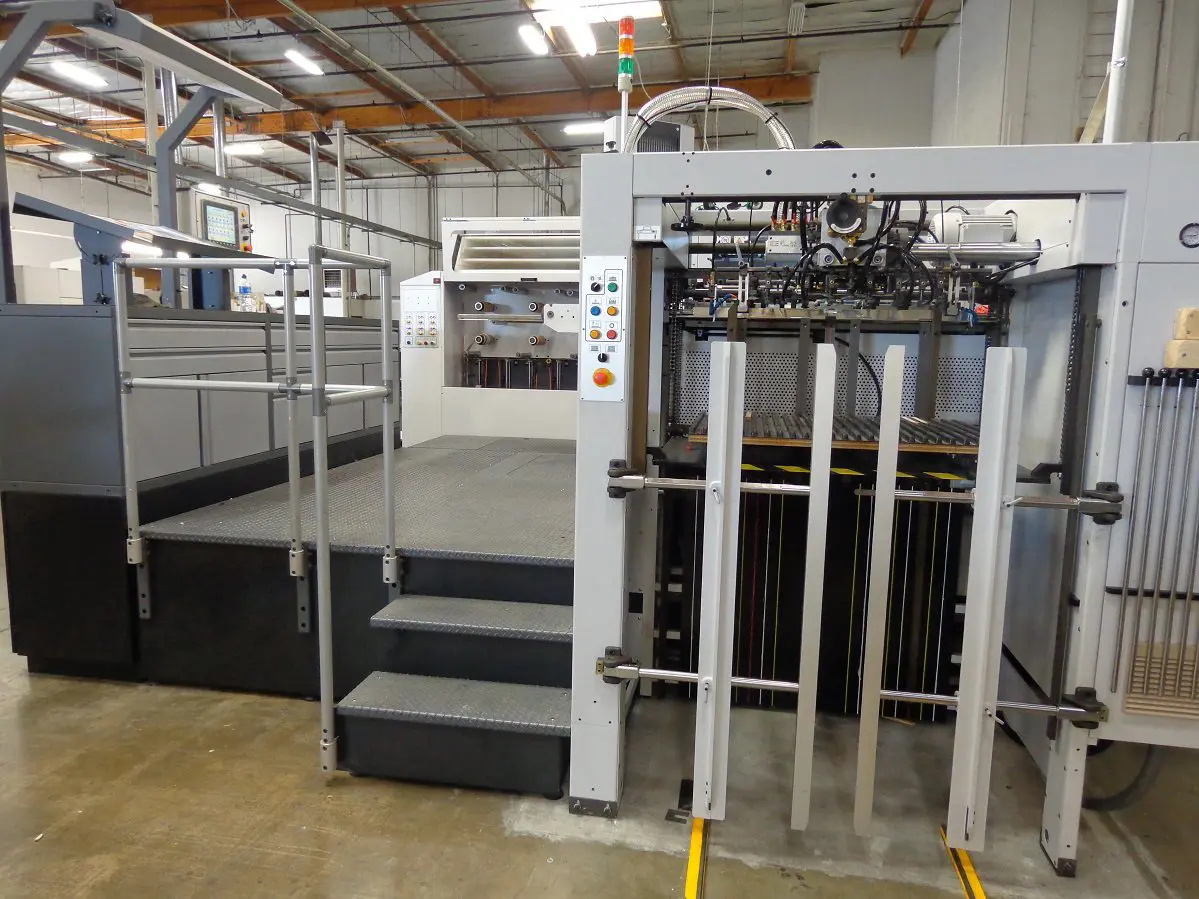

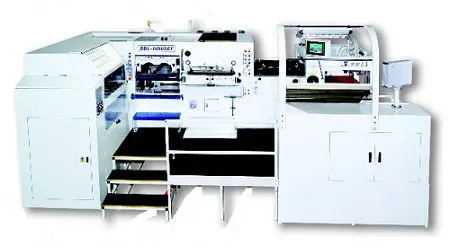

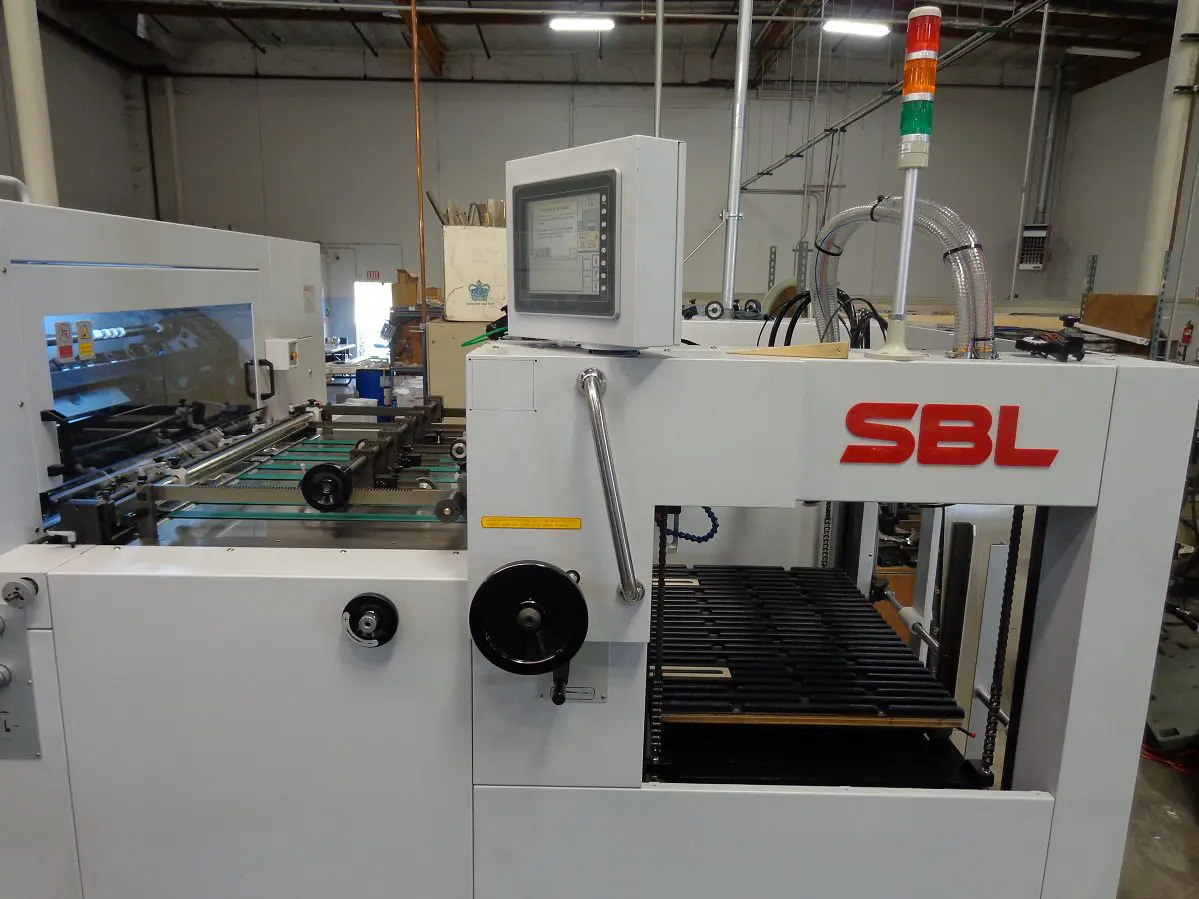

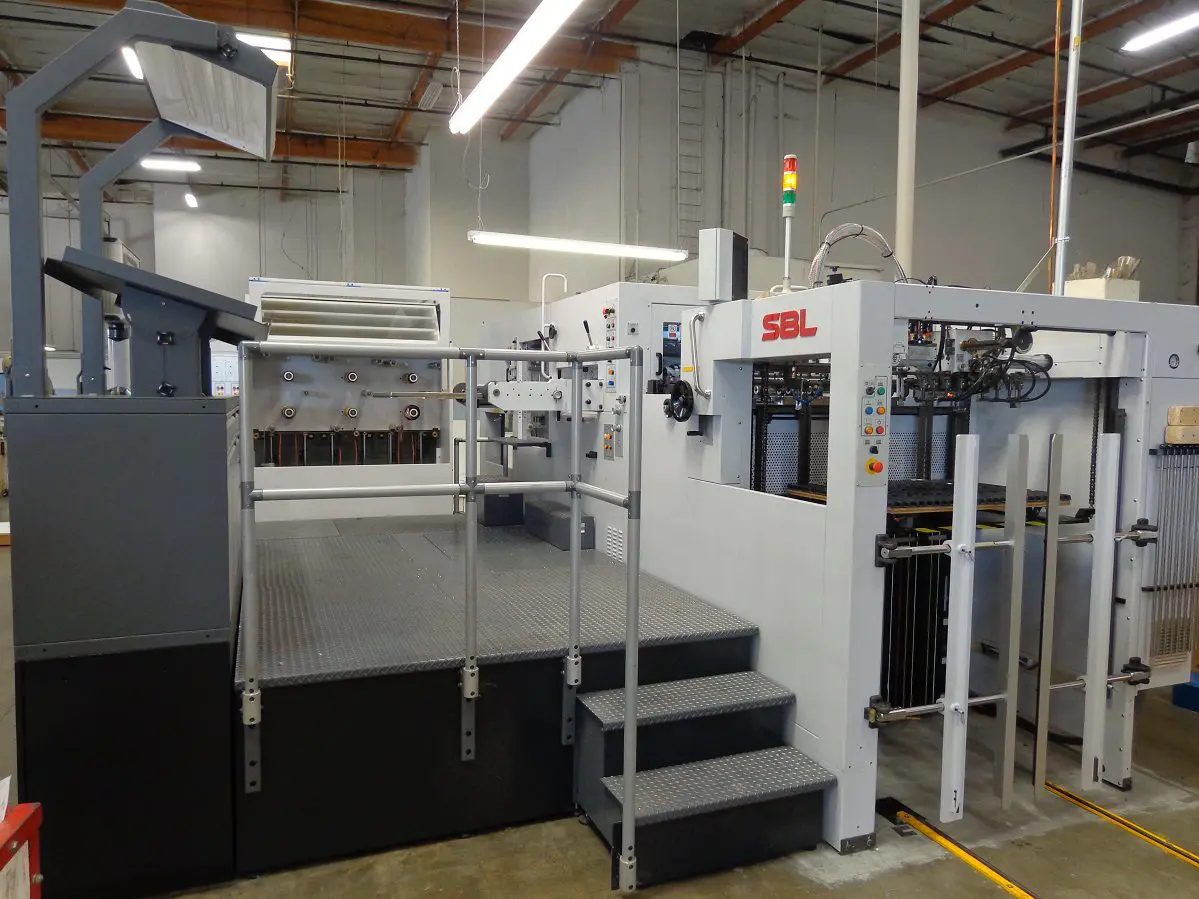

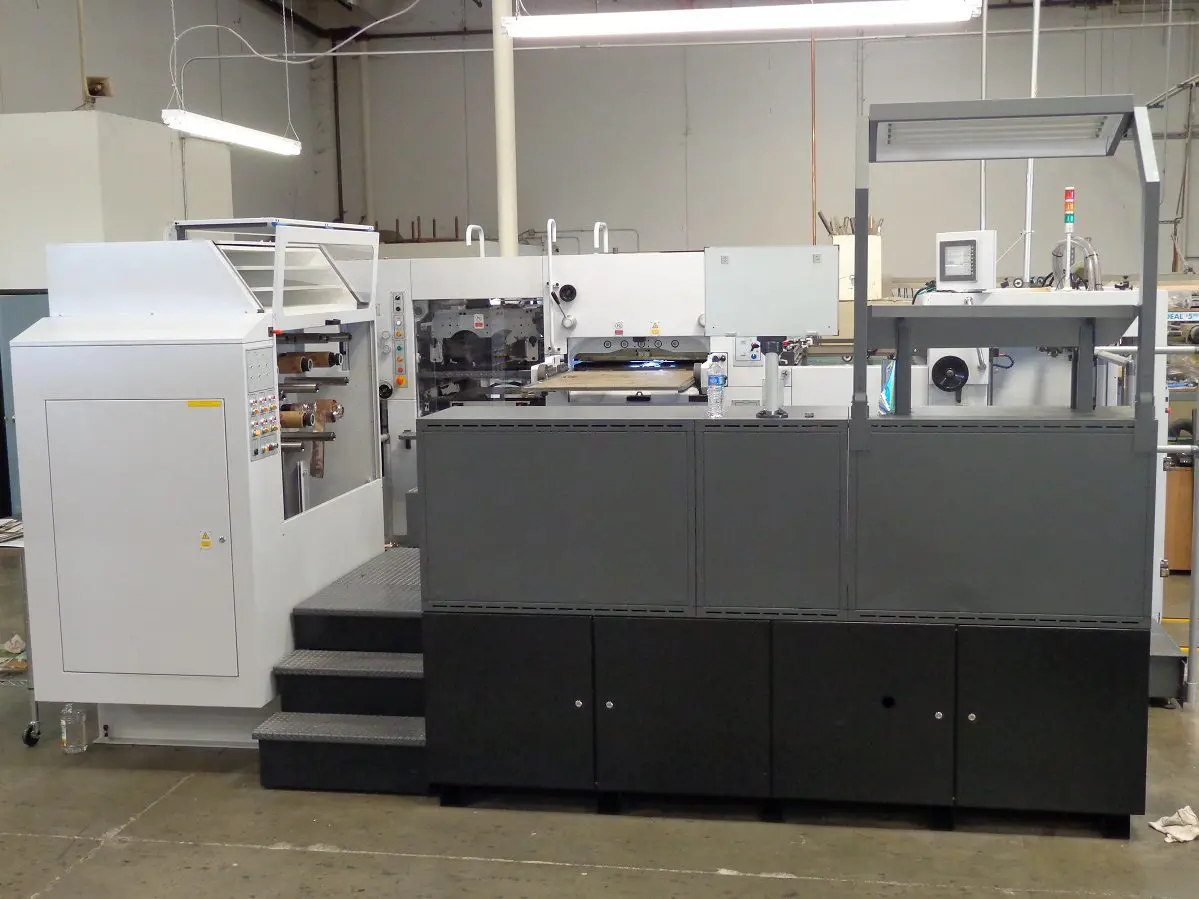

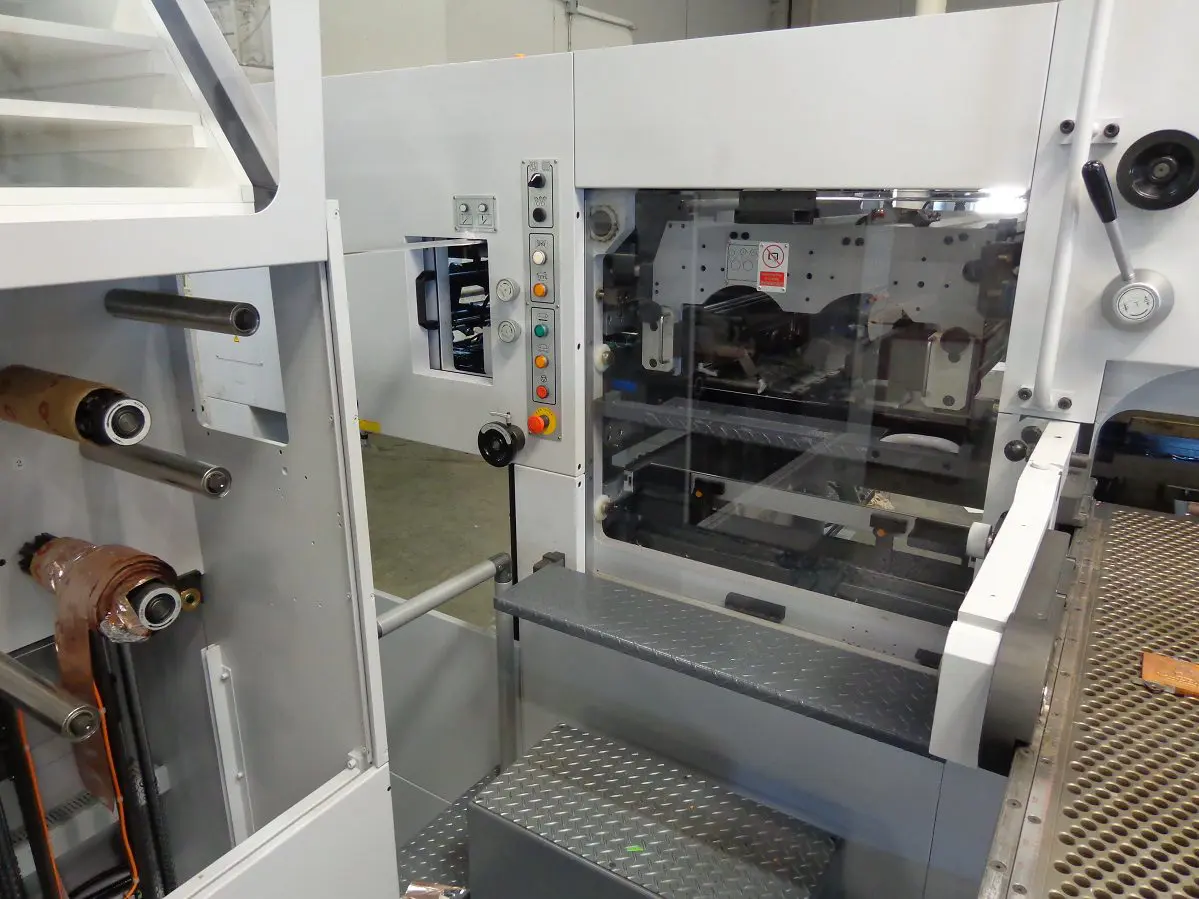

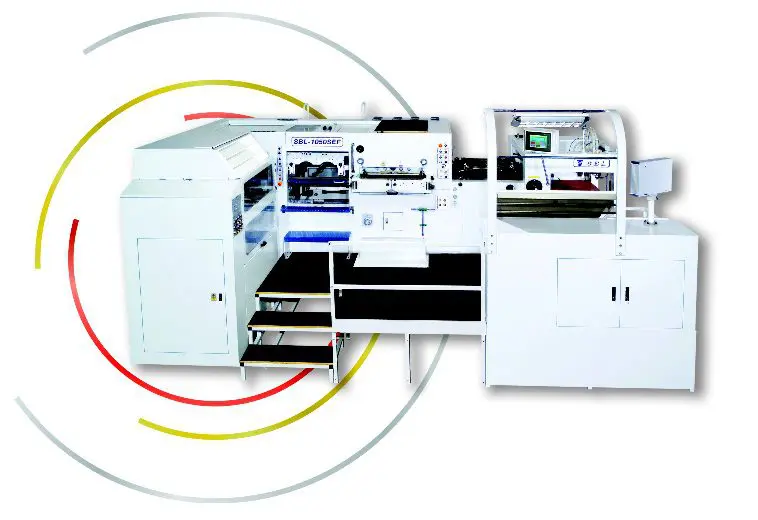

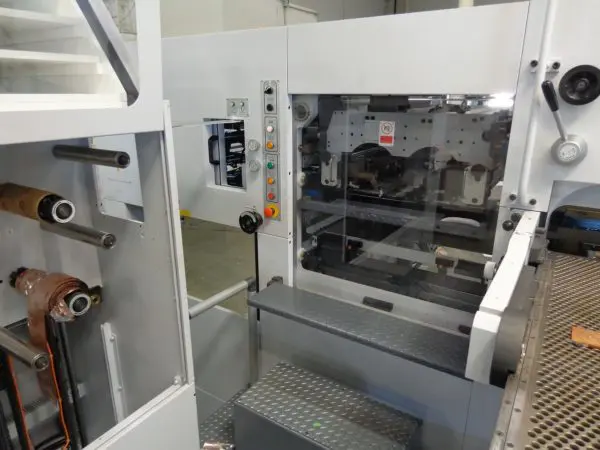

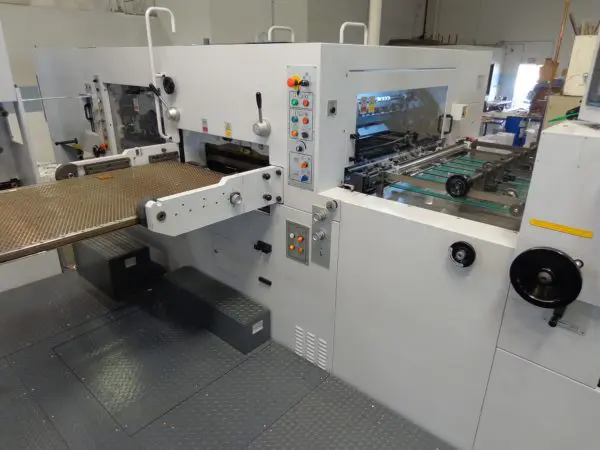

*NEW* SBL 1050-SEF (V02) Foil Stamper

Home>New Equipment>New Foil Stamping Equipment>*NEW* SBL 1050-SEF (V02) Foil Stamper

MATCH PRODUCT I.D.:

I.D.#1050-SEFV02

EQUIPMENT VIDEOS

EQUIPMENT OVERVIEW

MANUFACTURER:

SBL

PRODUCT CATEGORY:

,

EQUIPMENT NAME:

*NEW* SBL 1050-SEF (V02) Foil Stamper

DESCRIPTION:

*NEW* SBL 1050-SEF Foil Stamper (V02)
Automatic Foil Stamping Press with Die Cutting, Creasing and Stripping Capabilities,
Improved Feeder Head to Better Handle a Wider Variety of Stocks Including Light Weight Paper,
Quick Adjustment of Feed Wheel Assembly on In-Feed Table,
Auxiliary Pile for Non-Stop Feeding, Improved Gripper Bar Design,
Precision Leveled Platen w/ 300 Metric Tons of Pressure for Improved Foil Stamping & Heavy Cutting,
Head-Stop and Side Guide Sensors for Monitoring Registration,
Advanced Oil Lubrication for the Toggle System,
High-Quality Gripper Bar Chains,
Automatic Oiling of Gripper Bar Chains,
Automatic on/off Impression System,
Improved Sheet Delivery System with Electrical Slowdown Brush System,
Large Color Touch Screen Display for Easy Reading of Data and Troubleshooting Information,
High-Resolution Encoder For All Sensor Controls and Status Monitoring,
Updated Version of Foil Control System with Full Color Touch Screen Panel,
Improved Foil Threading System for Better Stability at Higher Speeds,
(3) Individually Programmable Foil Pulls,
(6) Foil Rewind Shafts with Dancer Rollers,
(20) Heating Zones with Individual Temperature Controls via Touch Screen,
Dual Air Blast for Better Sheet Separation and Smoother Delivery,
Uniquely Designed Cat-Walk to Save Space and Allow Easy Access,
Sheet Inspection Table with Overhead Light,
Machine Elevated for Increased Pile Capacity,
Honeycomb Base for Easy-Locking of Stamping and Embossing Dies,
Cutting Plate Locking System,
Pneumatic Chase, Easy Foil Loading System
Reference #1050-SEFV02

DATE OF MANUFACTURE:

NEW OR PREVIOUSLY OWNED:

New Equipment

UNDER POWER:

CURRENTLY IN OPERATION:

GENERAL SPECIFICATIONS:

Maximum Paper Size : 1050 x 750 mm (41⅓” x 29½”)
Minimum Paper Size : 400 x 370 mm (15¾” x 14½”)
Maximum Cutting Size : 1040 x 730 mm (41” x 28¾”)
Maximum Cutting Pressure : 300 Tons
Paper Thickness (Stock Range) : 0.1 – 2 mm (0.0039” – 0.07″)
Register Tolerance : +/- 0.075mm (+/- 0.0029”)
Minimum Gripper Margin : 9.5 mm (0.37”)
Inner Chase Size : 1144 x 760 mm (45″ x 29.9″)
Face Plate Size : 1080 x 736 mm (41½” x 29″)
Maximum Cutting Speed : 7,500 cycles per hour
Variable Speed Main Motor : 11.0 KW
Main Machine Power Required : 220 V, 60 Hz, 3-Phase, 20KVA, Foil Stamp: 35KVA
Machine Dimensions (L x W x H) : 5573 x 2356 x 2606 mm (18.28’ x 7.73’ x 8.55’)
Total Weight (approx.) : 19.5 Tons (42,900 lbs)

EQUIPMENT DOCUMENTATION

  • Documents Listed Below if Available

SBL-1050SEF-Brochure.pdf
