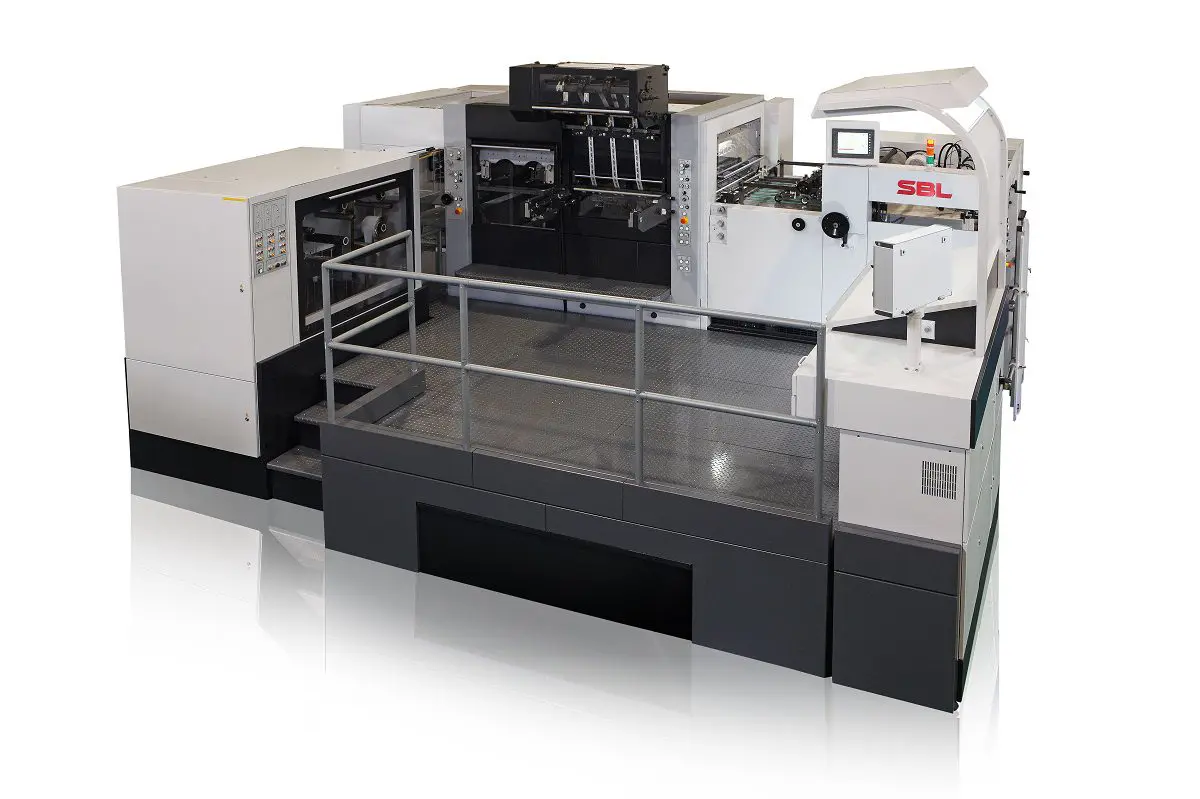

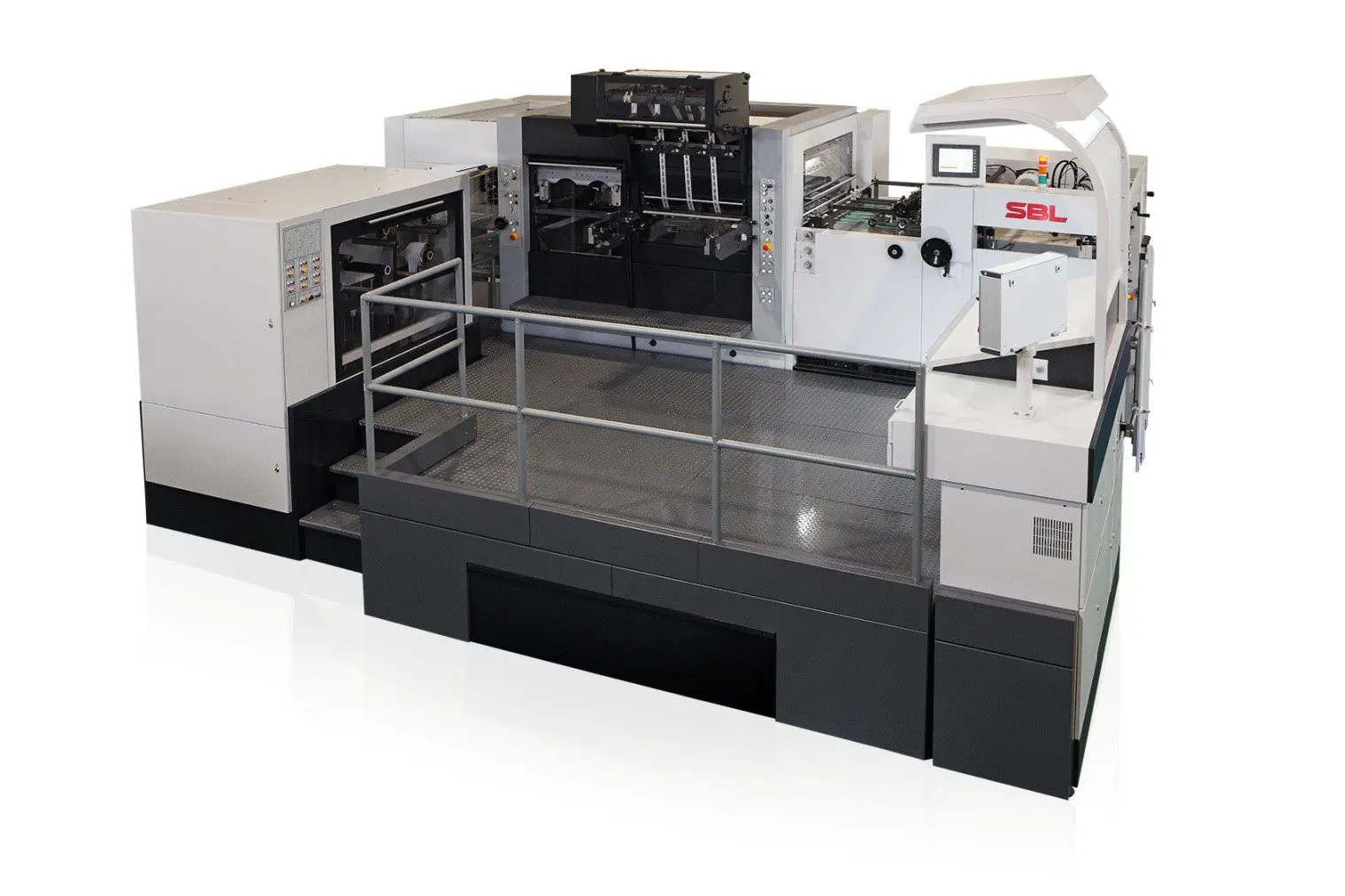

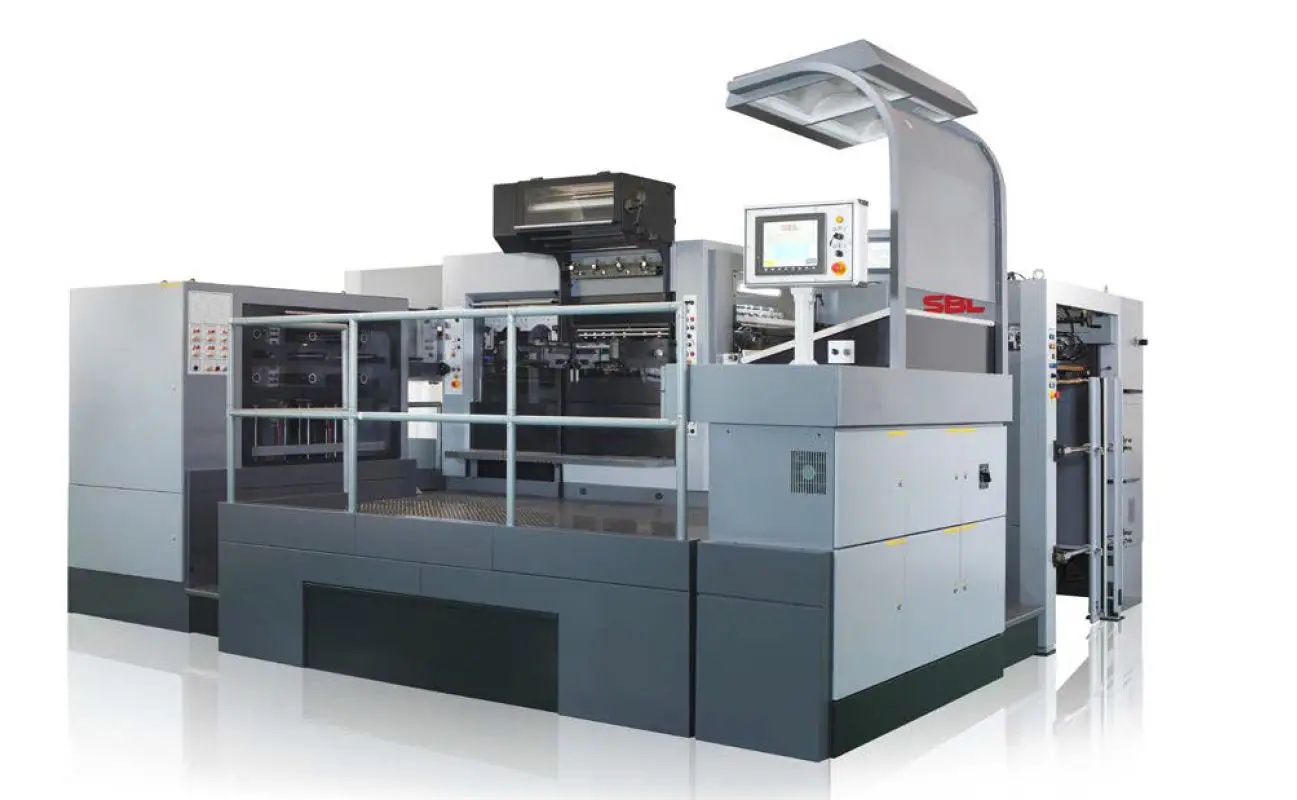

NEW SBL-1050EFT Foil Stamper and Die Cutter

Home>New Equipment>New Foil Stamping Equipment>NEW SBL-1050EFT Foil Stamper and Die Cutter

MATCH PRODUCT I.D.:

I.D.#1050-EFT

SBL-1050EFT

EQUIPMENT VIDEOS

EQUIPMENT OVERVIEW

MANUFACTURER:

SBL

PRODUCT CATEGORY:

,

EQUIPMENT NAME:

NEW SBL-1050EFT Foil Stamper and Die Cutter

DESCRIPTION:

NEW SBL-1050EFT Foil Stamper and Die Cutter
New version of the Foil Control System with full color touch screen panel,
Non-stop paper feeding system,
Dual support axles for stable feeding,
Dual Air blast,
Left & right side lay with fast changeover from pull to push function,
Feeder table with 6 transport belts,
Double sheet detector device,
Slow-down system,
Motorized cutting pressure can be adjusted up to 300 tons,
20 Zones heater base with individual temperature control on the touch-screen,
Retractable foil loading system,
Transversal hot stamping system,
Transversal foil feeding device,
Foil breakage detection sensor,
5 Draw Foil Puller and with 6 shaft re-winder,
Compact tab inserter,
Pneumatic side jogger,
(1) Honeycomb Die-chase and Temperature Controls Console,
Hot stamping,
Individually adjustable gripper bars,
Automated drive chain lubrication system,
Photoelectric sensor control to monitor sheet progress and lost sheet control throughout the machine,
Centre-Line system
Reference #1050-EFT

DATE OF MANUFACTURE:

NEW OR PREVIOUSLY OWNED:

NEW

UNDER POWER:

CURRENTLY IN OPERATION:

GENERAL SPECIFICATIONS:

Max. paper size 1050mm x 750mm
Min. paper size 400mm x 370mm
Max. die-cutting paper size 1040mm x 730mm
Width of gripper margin (min) 9.5mm
Diecutting force 300 Tons
Inner size of die chase 1144mm X 760mm
Cutting plate size 1080mm X 736mm
Thickness of die-cutting paper 0.1mm ~ 2mm(80~1400gsm)
Corrugated paper Up to 4mm
Height of cutting rules 23.6mm
Max. punching speed 7500 S/H
Register Tolerance +/- 0.075mm
Main power required 20KVA
Feeder pile height with pallet 1300mm
Feeder pile height with pallet(without non-stop) 1500mm
Delivery pile height 1140mm
Outer size of machine(mm) 5573L X 2801W X 2623H
Machine weight (approx.) 19.5Tons

Specifications are subject to change without notice

EQUIPMENT DOCUMENTATION

  • Documents Listed Below if Available

SBL-1050EFT-Brochure.pdf
